Description

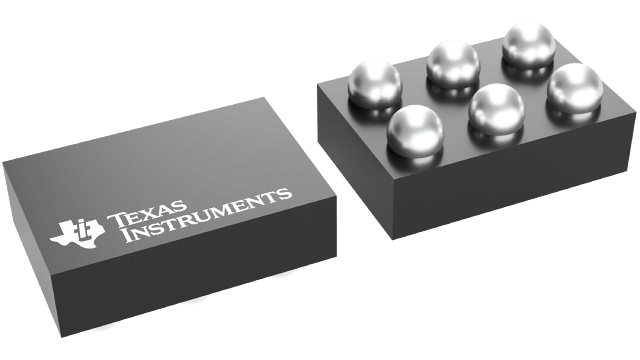

TMP117NAIYBGT Texas Instruments - Yeehing Electronics
0.1°C digital temperature sensor, 48-bit EEPROM, PT100/PT1000 RTD replacement
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.169 |
100 — 249 | 3.653 |
250 — 999 | 2.561 |
1,000 + | 1.44 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TMP117NAIYBGT Datasheet |
More Information
The TMP117 is a high-precision digital temperature sensor. It is designed to meet ASTM E1112 and ISO 80601 requirements for electronic patient thermometers. The TMP117 provides a 16-bit temperature result with a resolution of 0.0078 °C and an accuracy of up to ±0.1 °C across the temperature range of –20 °C to 50 °C with no calibration. The TMP117 has in interface that is I2C- and SMBus™-compatible, programmable alert functionality, and the device can support up to four devices on a single bus. Integrated EEPROM is included for device programming with an additional 48-bits memory available for general use.
