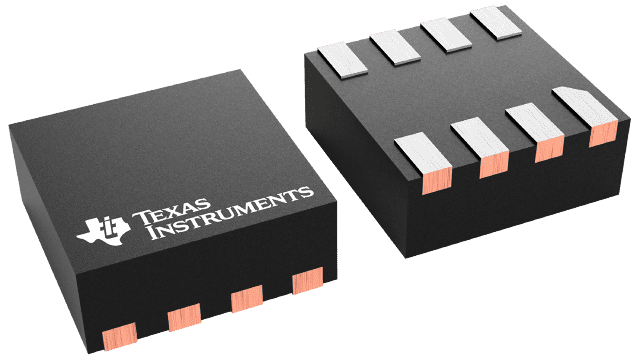

Texas Instruments
TMP451AQDQFRQ1
TMP451AQDQFRQ1
Couldn't load pickup availability
TMP451AQDQFRQ1 Texas Instruments - Yeehing Electronics
Automotive 1.7-V remote and local temp sensor with N-factor, filtering and series-R correction
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.066 |
| 100 — 249 | 0.881 |
| 250 — 999 | 0.633 |
| 1,000 + | 0.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Temperature Sensors |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Series | TMP451-Q1 |
| Brand | Texas Instruments |
| Product Type | Temperature Sensors |
| Factory Pack Quantity | 3000 |
| Subcategory | Sensors |
| Unit Weight | 0.000226 oz |
For more information, please refer to datasheet
Documents
| TMP451AQDQFRQ1 Datasheet |
More Information
The TMP451-Q1 device is a high-accuracy, low-power remote temperature sensor monitor with a built-in local temperature sensor. The remote temperature sensors are typically low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes that are integral parts of microprocessors, microcontrollers, or FPGAs. The temperature is represented as a 12-bit digital code for both the local and the remote sensors, giving a resolution of 0.0625°C. The temperature accuracy is ±1°C (maximum) in the typical operating range for the local and the remote temperature sensors. The two-wire serial interface accepts the SMBus communication protocol.
