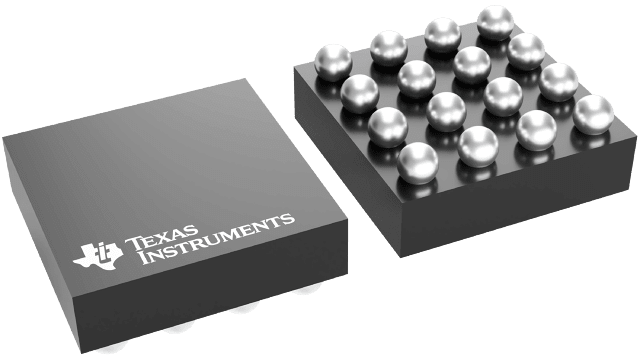

TMP468AIYFFR


YeeHing #: Y014-TMP468AIYFFR
Inventory: 5400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TMP468AIYFFR Texas Instruments - Yeehing Electronics

±0.75⁰C High-Accuracy Multi-channel Remote and Local Temperature Sensor

Pricing (USD)

Quantity Unit Price
1 — 99 2.153
100 — 249 1.778
250 — 999 1.277
1,000 + 0.56

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Board Mount Temperature Sensors
RoHS Y
Output Type Digital
Configuration Local, Remote
Accuracy +/- 0.5 C
Supply Voltage - Min 1.7 V
Supply Voltage - Max 3.6 V
Interface Type 2-Wire, I2C, SMBus
Resolution 13 bit
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Shutdown Shutdown
Mounting Style SMD/SMT
Package / Case DSBGA-16
Product Temperature Sensors
Packaging Reel
Output Current 6 mA
Series TMP468
Brand Texas Instruments
Operating Supply Current 240 uA, 400 uA
Product Type Temperature Sensors
Factory Pack Quantity 3000
Subcategory Sensors

For more information, please refer to datasheet

Documents

TMP468AIYFFR Datasheet

More Information

The TMP468 device is a multi-zone, high-accuracy, low-power temperature sensor using a two-wire, SMBus or I2C compatible interface. Up to eight remote diode-connected temperature zones can be monitored simultaneously in addition to the local temperature. Aggregating the temperature measurements across a system allows improved performance through tighter guard bands and can reduce board complexity. A typical use case is for monitoring the temperature across different processors, such as MCUs, GPUs, and FPGAs in complex systems such as servers and telecommunications equipment. Advanced features such as series resistance cancellation, programmable non-ideality factor, programmable offset, and programmable temperature limits are included to provide a robust thermal monitoring solution with improved accuracy and noise immunity.
