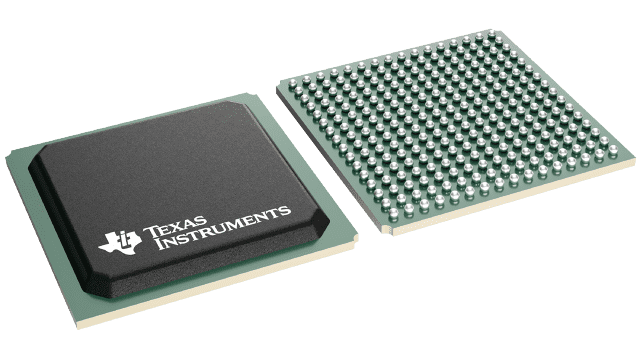

TMS320C28342ZFET Texas Instruments - Yeehing Electronics

C2000™ 32-bit MCU with 300 MIPS, FPU, 196 KB RAM, EMIF

Pricing (USD)

Quantity	Unit Price
1 — 99	12.267
100 — 249	10.716
250 — 999	8.262
1,000 +	5.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	32-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	BGA-256
Series	TMS320C28342
Core	TMS320C28x
Data Bus Width	32 bit
Maximum Clock Frequency	300 MHz
Program Memory Size	16 kB
Data RAM Size	196 kB
ADC Resolution	12 bit
Number of I/Os	88 I/O
Operating Supply Voltage	1.2 V, 1.8 V, 3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tray
Height	1.41 mm
Length	17 mm
Program Memory Type	ROM
Width	17 mm
Brand	Texas Instruments
Interface Type	CAN, I2C, SPI, UART
Moisture Sensitive	Yes
Number of ADC Channels	0 Channel
Number of Timers/Counters	3 Timer
Processor Series	TMS320C2x
Product Type	32-bit Microcontrollers - MCU
Factory Pack Quantity	90
Subcategory	Microcontrollers - MCU
Supply Voltage - Max	1.26 V, 3.46 V
Supply Voltage - Min	1.14 V, 3.14 V
Tradename	Delfino
Unit Weight	0.098203 oz

For more information, please refer to datasheet

Documents

TMS320C28342ZFET Datasheet

More Information

The TMS320C2834x (C2834x) Delfino™ microcontroller unit (MCU) devices build on TI’s existing F2833x high-performance floating-point microcontrollers. The C2834x delivers up to 300 MHz of floating-point performance, and has up to 516KB of on-chip RAM. Designed for real-time control applications, the C2834x is based on the C28x core, making it code-compatible with all C28x microcontrollers. The on-chip peripherals and low-latency core make the C2834x an excellent solution for performance-hungry real-time control applications.
