Texas Instruments

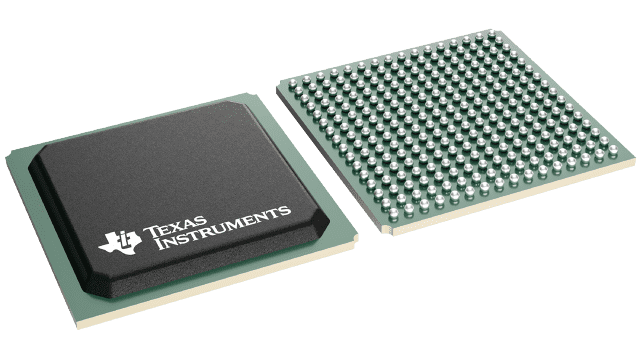

TMS320C28345ZFET
TMS320C28345ZFET
Regular price
$7.76 USD
Regular price
Sale price
$7.76 USD
Unit price
per
Couldn't load pickup availability
TMS320C28345ZFET Texas Instruments - Yeehing Electronics
C2000™ 32-bit MCU with 200 MIPS, FPU, 516 KB RAM, EMIF
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 18.393 |
| 100 — 249 | 16.066 |
| 250 — 999 | 12.387 |
| 1,000 + | 7.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 32-bit Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-256 |
| Series | TMS320C28345 |
| Core | TMS320C28x |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 200 MHz |
| Program Memory Size | 16 kB |
| Data RAM Size | 516 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 88 I/O |
| Operating Supply Voltage | 1.1 V, 1.8 V, 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Height | 1.41 mm |
| Length | 17 mm |
| Program Memory Type | ROM |
| Width | 17 mm |
| Brand | Texas Instruments |
| Interface Type | I2C, CAN, SPI, UART |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 0 Channel |
| Number of Timers/Counters | 3 Timer |
| Processor Series | TMS320C2x |
| Product Type | 32-bit Microcontrollers - MCU |
| Factory Pack Quantity | 90 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 1.16 V, 3.46 V |
| Supply Voltage - Min | 1.05 V, 3.14 V |
| Tradename | Delfino |
| Unit Weight | 0.098203 oz |
For more information, please refer to datasheet
Documents
| TMS320C28345ZFET Datasheet |
More Information
The TMS320C2834x (C2834x) Delfino™ microcontroller unit (MCU) devices build on TIs existing F2833x high-performance floating-point microcontrollers. The C2834x delivers up to 300 MHz of floating-point performance, and has up to 516KB of on-chip RAM. Designed for real-time control applications, the C2834x is based on the C28x core, making it code-compatible with all C28x microcontrollers. The on-chip peripherals and low-latency core make the C2834x an excellent solution for performance-hungry real-time control applications.
