Description

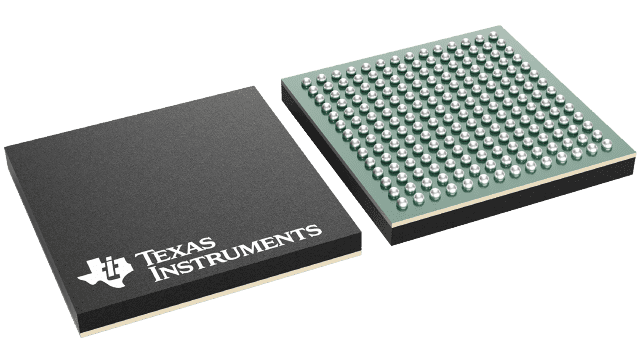

TMS320C5515AZCH10 Texas Instruments - Yeehing Electronics
Low power C55x fixed point DSP- up to 120MHz, USB, LDC interface, FFT HWA, SAR ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.485 |
| 100 — 249 | 6.538 |
| 250 — 999 | 5.041 |
| 1,000 + | 3.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-196 |
| Series | TMS320C5515 |
| Product | DSPs |
| Core | C55x |
| Maximum Clock Frequency | 100 MHz |
| Data RAM Size | 320 kB |
| Operating Supply Voltage | 1.3 V, 1.8 V, 2.5 V, 2.75 V, 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Number of I/Os | 26 I/O |
| Data Bus Width | 16 bit |
| Instruction Type | Fixed Point |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 3 Timer |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 184 |
| Subcategory | Embedded Processors & Controllers |
| Unit Weight | 0.008900 oz |
For more information, please refer to datasheet
Documents
| TMS320C5515AZCH10 Datasheet |
More Information
The device is a member of TI's TMS320C5000™ fixed-point Digital Signal Processor (DSP) product family and is designed for low-power applications.
