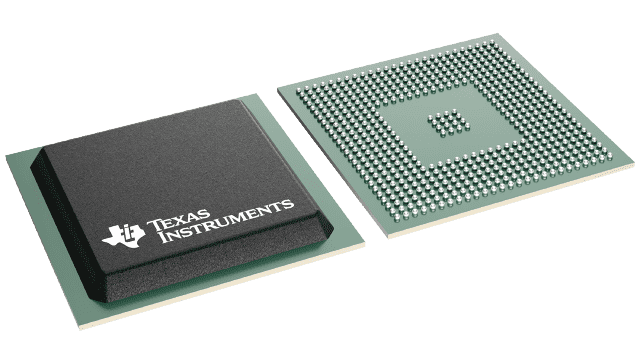

TMS320C6412AGDKA5 Texas Instruments - Yeehing Electronics

C64x fixed point DSP- up to 720MHz, McBSP, McASP, I2cC, Ethernet

Pricing (USD)

Quantity	Unit Price
1 — 99	67.44
100 — 249	65.412
250 — 999	54.459
1,000 +	35.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	N
Mounting Style	SMD/SMT
Package / Case	FC/CSP-548
Series	TMS320C6412
Product	DSPs
Maximum Clock Frequency	500 MHz
Operating Supply Voltage	1.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tube
Program Memory Type	Asynchronous SRAM, Synchronous SDRAM, SBSRAM
Brand	Texas Instruments
Number of I/Os	16 I/O
Data Bus Width	16 bit
Instruction Type	Fixed Point
Moisture Sensitive	Yes
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	60
Subcategory	Embedded Processors & Controllers
Unit Weight	0.086284 oz

For more information, please refer to datasheet

Documents

TMS320C6412AGDKA5 Datasheet

More Information

The TMS320C64x™DSPs (including the TMS320C6412 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The TMS320C6412 (C6412) device is based on the second-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture (VelociTI.2™) developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The C64x™ is a code-compatible member of the C6000™ DSP platform.
