Description

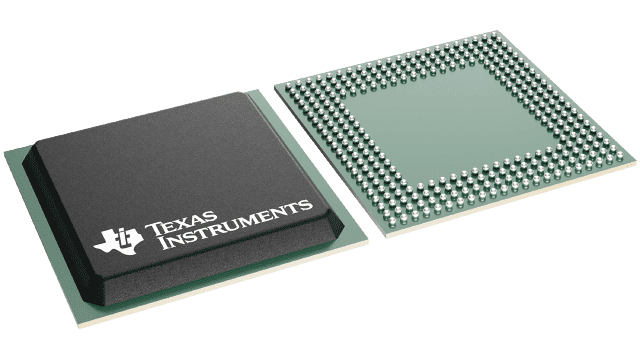

TMS320C6413ZTSA500 Texas Instruments - Yeehing Electronics
C64x fixed point DSP - 500MHz, McBSP, McASP, I2cC
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 42.584 |
100 — 249 | 37.853 |
250 — 999 | 31.117 |
1,000 + | 19.48 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Digital Signal Processors & Controllers - DSP, DSC |
RoHS | E |
Mounting Style | SMD/SMT |
Package / Case | FCBGA-288 |
Series | TMS320C6413 |
Product | DSPs |
Core | TMS320 |
Maximum Clock Frequency | 500 MHz |
Operating Supply Voltage | 1.2 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 90 C |
Packaging | Tray |
Height | 1.9 mm |
Length | 23 mm |
Program Memory Type | Asynchronous SRAM, Synchronous SDRAM, SBSRAM |
Width | 23 mm |
Brand | Texas Instruments |
Number of I/Os | 16 I/O |
Data Bus Width | 16 bit |
Instruction Type | Fixed Point |
Moisture Sensitive | Yes |
Product Type | DSP - Digital Signal Processors & Controllers |
Factory Pack Quantity | 60 |
Subcategory | Embedded Processors & Controllers |
Tradename | C6000 |
Unit Weight | 0.090792 oz |
For more information, please refer to datasheet
Documents
TMS320C6413ZTSA500 Datasheet |
More Information
The TMS320C64x DSPs (including the TMS320C6413, TMS320C6410 devices) are the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS320C6413 and TMS320C6410 (C6413 and C6410) devices are based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2) developed by Texas Instruments (TI) The high-performance, lower-cost C6413/C6410 DSPs enable customers to reduce system costs for telecom, medical, industrial, office, and photo lab equipment. The C64x is a code-compatible member of the C6000 DSP platform.
