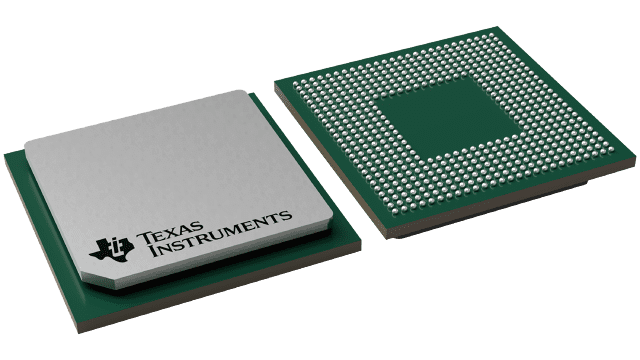

TMS320C6414TBCLZ7 Texas Instruments - Yeehing Electronics

C64x fixed point DSP- up to 1GHz, McBSP

Pricing (USD)

Quantity	Unit Price
1 — 99	110.84
100 — 249	107.506
250 — 999	89.505
1,000 +	58.34

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	FC/CSP-532
Series	TMS320C6414T
Product	DSPs
Core	TMS320C64x
Maximum Clock Frequency	720 MHz
L1 Cache Instruction Memory	16 kB
L1 Cache Data Memory	16 kB
Program Memory Size	-
Data RAM Size	-
Operating Supply Voltage	1.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tray
Brand	Texas Instruments
Interface Type	4-Wire Serial, HPI, PCI, SPI
Number of I/Os	16 I/O
Data Bus Width	32 bit
I/O Voltage	3.3 V
Instruction Type	Fixed Point
L2 Cache Instruction / Data Memory	1 MB
MMACS	4000 MMACS/8000 MMACS
Moisture Sensitive	Yes
Number of Cores	1 Core
Number of Timers/Counters	3 x 32 bit
Processor Series	C6000
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	60
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.24 V
Supply Voltage - Min	1.16 V
Tradename	TMS320 TMS320C6000 C6000
Watchdog Timers	No Watchdog Timer
Unit Weight	0.135106 oz

For more information, please refer to datasheet

Documents

TMS320C6414TBCLZ7 Datasheet
