Texas Instruments
TMS320C6418ZTS600
TMS320C6418ZTS600
Couldn't load pickup availability

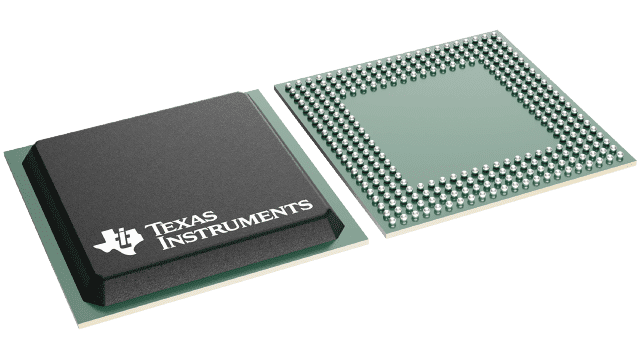

TMS320C6418ZTS600 Texas Instruments - Yeehing Electronics
C64x fixed point DSP - 600MHz, McBSP, 2 x PCI
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 69.422 |
| 100 — 249 | 61.709 |
| 250 — 999 | 50.728 |
| 1,000 + | 31.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | E |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-288 |
| Series | TMS320C6418 |
| Product | DSPs |
| Core | TMS320 |
| Maximum Clock Frequency | 600 MHz |
| Data RAM Size | 544 kB |
| Operating Supply Voltage | 1.4 V, 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 90 C |
| Packaging | Tray |
| Height | 1.9 mm |
| Length | 23 mm |
| Width | 23 mm |
| Brand | Texas Instruments |
| Data Bus Width | 16 bit |
| Instruction Type | Fixed Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Unit Weight | 0.090792 oz |
For more information, please refer to datasheet
Documents
| TMS320C6418ZTS600 Datasheet |
More Information
The TMS320C64x DSPs (including the TMS320C6418 device) are the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS320C6418 (C6418) device is based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2) developed by Texas Instruments (TI). The high-performance, lower-cost C6418 DSP enables customers to reduce system costs for telecom, software radio, Digital Terrestrial Television Broadcasting (DTTB), and digital Broadcast Satellite/Communication Satellite (BS/CS) applications. The C64x is a code-compatible member of the C6000 DSP platform.
