Description

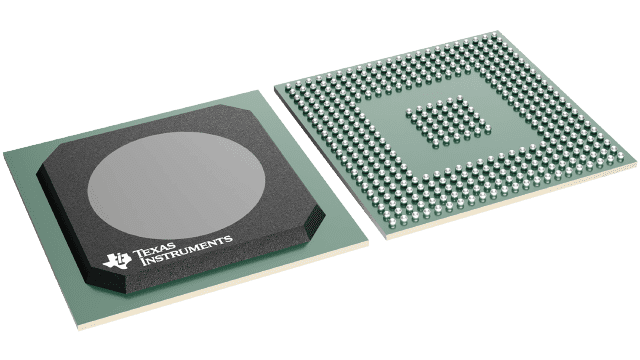

TMS320C6421ZDU4 Texas Instruments - Yeehing Electronics
C64x+ fixed point DSP- up to 600MHz, 8 Bit EMIFA , 16-Bit DDR2, SDRAM
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.35 |
| 100 — 249 | 13.408 |
| 250 — 999 | 10.338 |
| 1,000 + | 6.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-376 |
| Series | TMS320C6421 |
| Product | DSPs |
| Maximum Clock Frequency | 400 MHz |
| Operating Supply Voltage | 1.05 V, 1.2 V, 1.8 V, 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Brand | Texas Instruments |
| Data Bus Width | 16 bit |
| Instruction Type | Fixed Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Part # Aliases | TNETV6421INZDU4 |
For more information, please refer to datasheet
Documents
| TMS320C6421ZDU4 Datasheet |
More Information
The TMS320C64x+ DSPs (including the TMS320C6421 device) are the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The C6421 device is based on the third-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for digital signal processor applications. The C64x+ devices are upward code-compatible from previous devices that are part of the C6000 DSP platform. The C64x DSPs support added functionality and have an expanded instruction set from previous devices.
