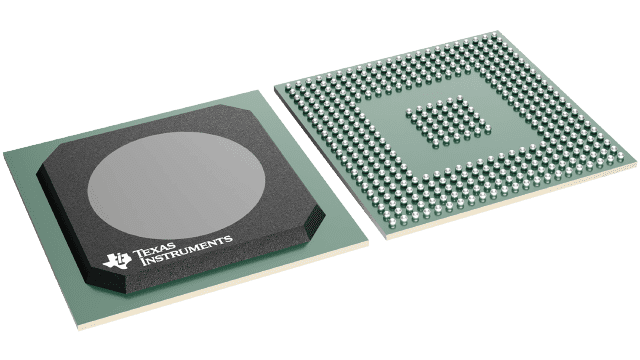

TMS320C6421ZDUL Texas Instruments - Yeehing Electronics

C64x+ fixed point DSP- up to 600MHz, 8 Bit EMIFA , 16-Bit DDR2, SDRAM

Pricing (USD)

Quantity	Unit Price
1 — 99	17.038
100 — 249	14.883
250 — 999	11.475
1,000 +	7.18

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	BGA-376
Series	TMS320C6421
Product	DSPs
Core	C64x
Maximum Clock Frequency	600 MHz
Data RAM Size	64 kB
Operating Supply Voltage	1.05 V, 1.8 V, 3.3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 90 C
Brand	Texas Instruments
Number of I/Os	111 I/O
Data Bus Width	16 bit
Instruction Type	Fixed Point
Moisture Sensitive	Yes
Number of Timers/Counters	3 Timer
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	60
Subcategory	Embedded Processors & Controllers
Unit Weight	0.062050 oz

For more information, please refer to datasheet

Documents

TMS320C6421ZDUL Datasheet

More Information

The TMS320C64x+™ DSPs (including the TMS320C6421 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The C6421 device is based on the third-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for digital signal processor applications. The C64x+™ devices are upward code-compatible from previous devices that are part of the C6000™ DSP platform. The C64x™ DSPs support added functionality and have an expanded instruction set from previous devices.
