Texas Instruments

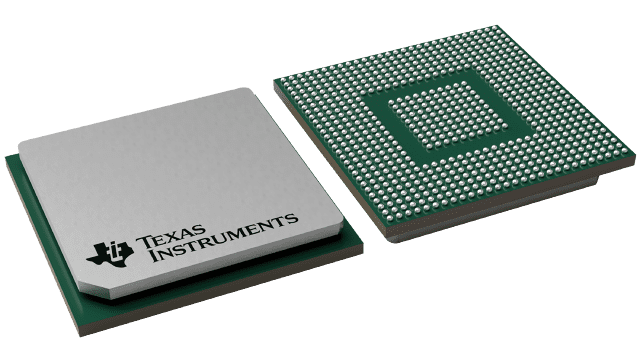

TMS320C6457CCMH2
TMS320C6457CCMH2
Regular price
$66.74 USD
Regular price
Sale price
$66.74 USD
Unit price
per
Couldn't load pickup availability
TMS320C6457CCMH2 Texas Instruments - Yeehing Electronics
Communications infrastructure digital signal processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 110.954 |
| 100 — 249 | 107.617 |
| 250 — 999 | 89.597 |
| 1,000 + | 66.74 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-688 |
| Series | TMS320C6457 |
| Product | DSPs |
| Core | C64x |
| Maximum Clock Frequency | 1.2 GHz |
| Program Memory Size | 2 MB |
| Data RAM Size | 32 kB |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 100 C |
| Packaging | Tray |
| Height | 3.3 mm |
| Length | 23 mm |
| Program Memory Type | Cache, ROM, SRAM |
| Width | 23 mm |
| Brand | Texas Instruments |
| Data ROM Size | 64 kB |
| Interface Type | HPI, I2C |
| Data Bus Width | 16 bit |
| Instruction Type | Fixed Point |
| MMACS | 9600 MMACs |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 2 Timer |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Supply Voltage - Max | 3.465 V |
| Supply Voltage - Min | 1.067 V |
For more information, please refer to datasheet
Documents
| TMS320C6457CCMH2 Datasheet |
More Information
The TMS320C64x+™ DSPs (including the TMS320C6457 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The C6457 device is based on the third-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for applications including video and telecom infrastructure, imaging/medical, and wireless infrastructure (WI). The C64x+ devices are upward code-compatible from previous devices that are part of the C6000™ DSP platform.
