Texas Instruments
TMS320C6652CZHA6
TMS320C6652CZHA6
Regular price
$24.42 USD
Regular price
Sale price
$24.42 USD
Unit price
per
Couldn't load pickup availability

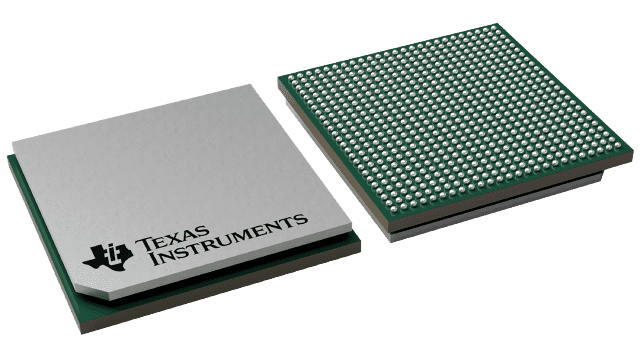

TMS320C6652CZHA6 Texas Instruments - Yeehing Electronics
High performance cost-optimized single-core C66x fixed and floating-point DSP - 600MHz
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 53.383 |
| 100 — 249 | 47.452 |
| 250 — 999 | 39.008 |
| 1,000 + | 24.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-625 |
| Series | TMS320C6652 |
| Product | DSPs |
| Core | C66x |
| Maximum Clock Frequency | 600 MHz |
| Program Memory Size | 1 MB |
| Data RAM Size | 1 MB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 100 C |
| Brand | Texas Instruments |
| Interface Type | I2C, SPI, UART |
| Instruction Type | Fixed/Floating Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Unit Weight | 0.172334 oz |
For more information, please refer to datasheet
Documents
| TMS320C6652CZHA6 Datasheet |
More Information
The C6654 and C6652 are high performance fixed- and floating-point DSPs that are based on TIs KeyStone multicore architecture. Incorporating the new and innovative C66x DSP core, this device can run at a core speed of up to 850 MHz for C6654 and 600 MHz for C6652. For developers of a broad range of applications, both C6654 and C6652 DSPs enable a platform that is power-efficient and easy to use. In addition, the C6654 and C6652 DSPs are fully backward compatible with all existing C6000™ family of fixed- and floating-point DSPs.
