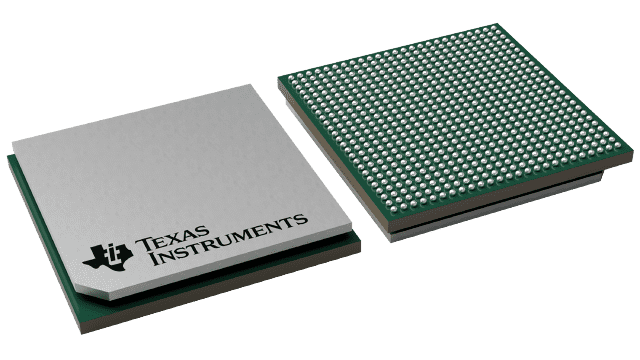

TMS320C6654CZH8


YeeHing #: Y010-TMS320C6654CZH8
Inventory: 3800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TMS320C6654CZH8 Texas Instruments - Yeehing Electronics

High performance single-core C66x fixed and floating-point DSP- up to 850MHz

Pricing (USD)

Quantity Unit Price
1 — 99 None
100 — 249 None
250 — 999 None
1,000 + None

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital Signal Processors & Controllers - DSP, DSC
RoHS Y
Mounting Style SMD/SMT
Package / Case FCBGA-625
Series TMS320C6654
Product DSPs
Core C66x
Maximum Clock Frequency 850 MHz
Program Memory Size 64 kB
Data RAM Size 1 MB
Operating Supply Voltage 900 mV to 1.1 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 100 C
Packaging Tray
Brand Texas Instruments
Interface Type I2C, EMAC, PCIe, UPP
Number of I/Os 32 I/O
Data Bus Width 8 bit/16 bit/32 bit
Instruction Type Fixed/Floating Point
MMACS 27200 MMACS
Moisture Sensitive Yes
Number of Timers/Counters 8 Timer
Product Type DSP - Digital Signal Processors & Controllers
Factory Pack Quantity 60
Subcategory Embedded Processors & Controllers
Supply Voltage - Max 1.1 V
Supply Voltage - Min 900 mV
Unit Weight 0.172334 oz

For more information, please refer to datasheet

Documents

TMS320C6654CZH8 Datasheet

More Information

The C6654 and C6652 are high performance fixed- and floating-point DSPs that are based on TI’s KeyStone multicore architecture. Incorporating the new and innovative C66x DSP core, this device can run at a core speed of up to 850 MHz for C6654 and 600 MHz for C6652. For developers of a broad range of applications, both C6654 and C6652 DSPs enable a platform that is power-efficient and easy to use. In addition, the C6654 and C6652 DSPs are fully backward compatible with all existing C6000™ family of fixed- and floating-point DSPs.
