Texas Instruments
TMS320C6657GZHA
TMS320C6657GZHA
Regular price
$70.82 USD
Regular price
Sale price
$70.82 USD
Unit price
per
Couldn't load pickup availability

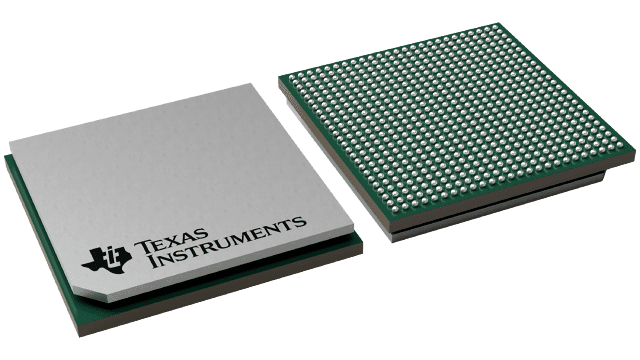

TMS320C6657GZHA Texas Instruments - Yeehing Electronics
High performance dual-core C66x fixed and floating-point DSP- up to 1.25GHz, 2 UART
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 117.736 |
| 100 — 249 | 114.195 |
| 250 — 999 | 95.074 |
| 1,000 + | 70.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-625 |
| Series | TMS320C6657 |
| Product | DSPs |
| Core | C66x |
| Maximum Clock Frequency | 1 GHz, 1.25 GHz |
| Program Memory Size | 128 kB |
| Data RAM Size | 3 MB |
| Operating Supply Voltage | 900 mV to 1.1 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 100 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Interface Type | EMAC, I2C, Hyperlink, PCIe, RapidIO, UPP |
| Number of I/Os | 32 I/O |
| Data Bus Width | 32 bit |
| Instruction Type | Fixed/Floating Point |
| MMACS | 80000 MMACS |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 10 Timer |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Supply Voltage - Max | 1.1 V |
| Supply Voltage - Min | 900 mV |
| Unit Weight | 0.173752 oz |
For more information, please refer to datasheet
Documents
| TMS320C6657GZHA Datasheet |
More Information
The C665x are high performance fixed- and floating-point DSPs that are based on TIs KeyStone multicore architecture. Incorporating the new and innovative C66x DSP core, this device can run at a core speed of up to 1.25 GHz. For developers of a broad range of applications, both C665x DSPs enable a platform that is power-efficient and easy to use. In addition, the C665x DSPs are fully backward compatible with all existing C6000™ family of fixed- and floating-point DSPs.
