TMS320C6670ACYPA Texas Instruments - Yeehing Electronics

4 core fixed and floating point DSP for Communications and Telecom

Pricing (USD)

Quantity	Unit Price
1 — 99	214.368
100 — 249	194.04
250 — 999	188.496
1,000 +	129.36

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT

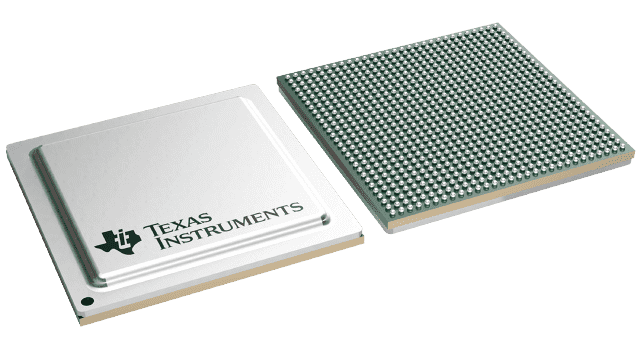

Package / Case	FCBGA-841
Series	TMS320C6670
Product	DSPs
Core	C66x
Maximum Clock Frequency	1 GHz, 1.2 GHz
Program Memory Size	256 kB
Data RAM Size	6 MB
Operating Supply Voltage	900 mV to 1.1 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 100 C
Brand	Texas Instruments
Number of I/Os	16 I/O
Data Bus Width	8 bit/16 bit/32 bit
Instruction Type	Fixed/Floating Point
MMACS	153000 MMACS
Moisture Sensitive	Yes
Number of Timers/Counters	8 Timer
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	44
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.1 V
Supply Voltage - Min	900 mV
Unit Weight	0.173382 oz

For more information, please refer to datasheet

Documents

TMS320C6670ACYPA Datasheet

More Information

The TMS320C6670 Multicore Fixed and Floating Point System on Chip is a member of the C66xx SoC family based on TI's new KeyStone Multicore SoC Architecture designed specifically for high performance applications such as software defined radio, emerging broadband and other communications segments. Integrated with four C66x CorePac DSPs, each core runs at 1.0 to 1.20 GHz enabling up to 4.8 GHz. Hardware acceleration provides a highly integrated, power efficient and easy to use platform for implementing a combination of multi-band, multi-standard waveforms, including proprietary air-interfaces. The C6670 platform is power efficient and easy to use. The C66x CorePac DSP is fully backward compatible with all existing C6000 family of fixed and floating point DSPs.
