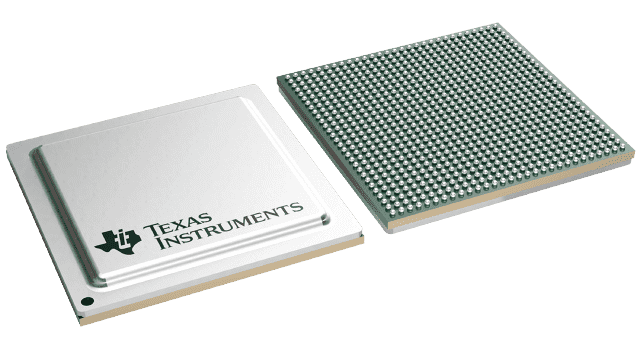

TMS320C6671ACYP Texas Instruments - Yeehing Electronics

High performance single-core C66x fixed and floating-point DSP - 1GHz

Pricing (USD)

Quantity	Unit Price
1 — 99	120.582
100 — 249	109.148
250 — 999	106.029
1,000 +	72.77

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	FCBGA-841
Series	TMS320C6671
Product	DSPs
Core	C66x
Maximum Clock Frequency	1 GHz, 1.25 GHz
Program Memory Size	64 kB
Data RAM Size	4.5 MB
Operating Supply Voltage	900 mV to 1.1 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 100 C
Brand	Texas Instruments
Number of I/Os	16 I/O
Data Bus Width	8 bit/16 bit/32 bit
Instruction Type	Fixed/Floating Point
MMACS	40000 MMACS
Moisture Sensitive	Yes
Number of Timers/Counters	9 Timer
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	44
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.1 V
Supply Voltage - Min	900 mV

For more information, please refer to datasheet

Documents

TMS320C6671ACYP Datasheet

More Information

The TMS320C6671 Fixed and Floating Point Digital Signal Processor is based on TI's KeyStone multicore architecture. Integrated with the C66x CorePac DSP runing at 1.0 to 1.25 GHz. The device supports high-performance signal processing applications such as mission critical, medical imaging, test, and automation. The C6671 platform is power efficient and easy to use. The C66x CorePac DSP is fully backward compatible with all existing C6000 family of fixed and floating point DSPs.
