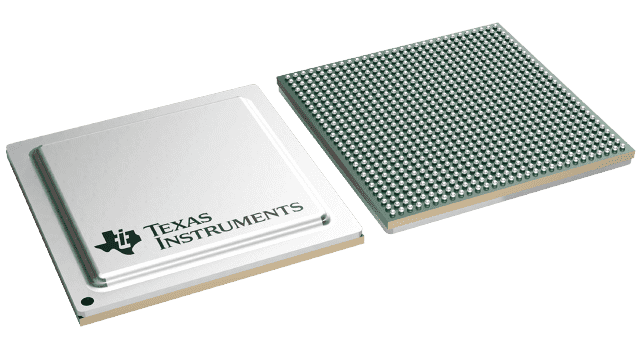

TMS320C6672ACYP Texas Instruments - Yeehing Electronics

High performance dual-core C66x fixed and floating-point DSP- up to 1.25GHz

Pricing (USD)

Quantity	Unit Price
1 — 99	151.395
100 — 249	137.039
250 — 999	133.123
1,000 +	91.36

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	FCBGA-841
Series	TMS320C6672
Product	DSPs
Core	C66x
Maximum Clock Frequency	1 GHz, 1.25 GHz, 1.5 GHz
Program Memory Size	128 kB
Data RAM Size	5 MB
Operating Supply Voltage	900 mV to 1.1 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 100 C
Packaging	Tray
Brand	Texas Instruments
Number of I/Os	16 I/O
Data Bus Width	8 bit/16 bit/32 bit
Instruction Type	Fixed/Floating Point
MMACS	80000 MMACS
Moisture Sensitive	Yes
Number of Timers/Counters	10 Timer
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	44
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.1 V
Supply Voltage - Min	900 mV
Unit Weight	0.173396 oz

For more information, please refer to datasheet

Documents

TMS320C6672ACYP Datasheet

More Information

The TMS320C6672 Multicore Fixed and Floating Point Digital Signal Processor is based on TI's KeyStone multicore architecture. Integrated with two C66x CorePac DSPs, each core runs at 1.0 to 1.25 GHz enabling up to 2.5 GHz. The device supports high-performance signal processing applications such as mission critical, medical imaging, test, and automation. The C6672 platform is power efficient and easy to use. The C66x CorePac DSP is fully backward compatible with all existing C6000 family of fixed and floating point DSPs.
