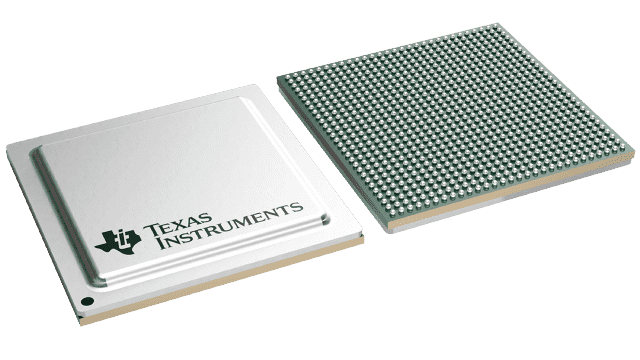

TMS320C6678ACYPA Texas Instruments - Yeehing Electronics
High performance octo-core C66x fixed and floating-point DSP- up to 1.25GHz
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 198.47 |
| 100 — 249 | 175.48 |
| 250 — 999 | 168.97 |
| 1,000 + | 164.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-841 |
| Series | TMS320C6678 |
| Product | DSPs |
| Core | C66x |
| Maximum Clock Frequency | 1 GHz, 1.25 GHz |
| Program Memory Size | 512 kB |
| Data RAM Size | 8 MB |
| Operating Supply Voltage | 900 mV to 1.1 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 100 C |
| Packaging | Tray |
| Program Memory Type | Cache |
| Brand | Texas Instruments |
| Interface Type | I2C, UART |
| Number of I/Os | 16 I/O |
| Data Bus Width | 8 bit/16 bit/32 bit |
| Instruction Type | Fixed/Floating Point |
| MMACS | 320000 MMACS |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 16 Timer |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 44 |
| Subcategory | Embedded Processors & Controllers |
| Supply Voltage - Max | 1.1 V |
| Supply Voltage - Min | 900 mV |
| Tradename | C6000 |
| Unit Weight | 0.173396 oz |
For more information, please refer to datasheet
Documents
| TMS320C6678ACYPA Datasheet |
More Information
The TMS320C6678 Multicore Fixed and Floating Point Digital Signal Processor is based on TI's KeyStone multicore architecture. Integrated with eight C66x CorePac DSPs, each core runs at 1.0 to 1.25 GHz enabling up to 10 GHz. The device supports high-performance signal processing applications such as mission critical, medical imaging, test, and automation. The C6678 platform is power efficient and easy to use. The C66x CorePac DSP is fully backward compatible with all existing C6000 family of fixed and floating point DSPs.
