Texas Instruments

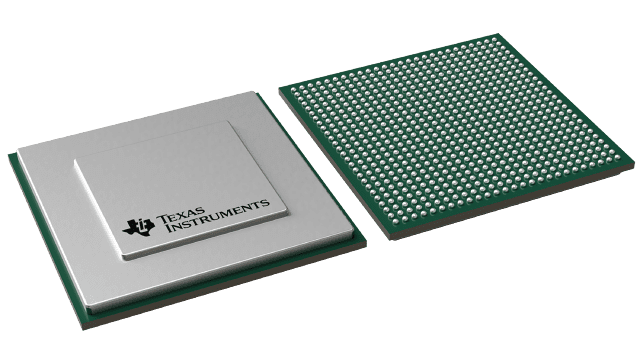

TMS320C6701GJC150
TMS320C6701GJC150
Couldn't load pickup availability
TMS320C6701GJC150 Texas Instruments - Yeehing Electronics
C67x floating-point DSP- up to 167MHz, McBSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 101.825 |
| 100 — 249 | 98.762 |
| 250 — 999 | 82.225 |
| 1,000 + | 53.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | N |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-352 |
| Series | TMS320C6701 |
| Product | DSPs |
| Core | C6701 |
| Maximum Clock Frequency | 150 MHz |
| L1 Cache Instruction Memory | 64 kB |
| L1 Cache Data Memory | - |
| Data RAM Size | 64 kB |
| Operating Supply Voltage | 1.8 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 90 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Data Bus Width | 32 bit |
| I/O Voltage | 3.3 V |
| Instruction Type | Floating Point |
| MFLOPS | 1 GFLOPS |
| MMACS | 334 MMACS |
| Moisture Sensitive | Yes |
| Number of Cores | 1 Core |
| Number of Timers/Counters | 2 Timer |
| Processor Series | TMS320C6701 |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 24 |
| Subcategory | Embedded Processors & Controllers |
| Supply Voltage - Max | 1.89 V |
| Supply Voltage - Min | 1.71 V |
| Unit Weight | 0.492329 oz |
For more information, please refer to datasheet
Documents
| TMS320C6701GJC150 Datasheet |
More Information
The TMS320C67x DSPs are the floating-point DSP family in the TMS320C6000 DSP platform. The TMS320C6701 (C6701) device is based on the high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making this DSP an excellent choice for multichannel and multifunction applications. With performance of up to 1 giga floating-point operations per second (GFLOPS) at a clock rate of 167 MHz, the C6701 offers cost-effective solutions to high-performance DSP programming challenges. The C6701 DSP possesses the operational flexibility of high-speed controllers and the numerical capability of array processors. This processor has 32 general-purpose registers of 32-bit word length and eight highly independent functional units. The eight functional units provide four floating-/fixed-point ALUs, two fixed-point ALUs, and two floating-/fixed-point multipliers. The C6701 can produce two multiply-accumulates (MACs) per cycle for a total of 334 million MACs per second (MMACS). The C6701 DSP also has application-specific hardware logic, on-chip memory, and additional on-chip peripherals.
