Texas Instruments
TMS320C6711DGDP250
TMS320C6711DGDP250
Regular price
$10.88 USD
Regular price
Sale price
$10.88 USD
Unit price
per
Couldn't load pickup availability

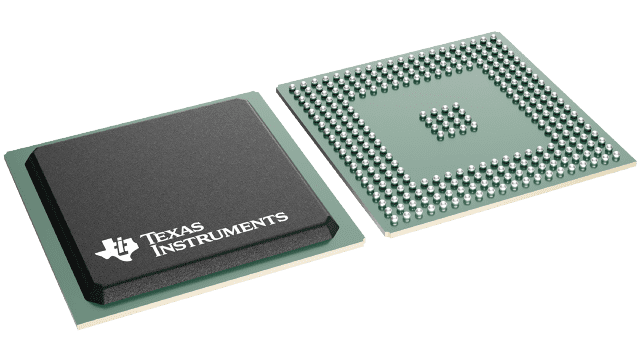

TMS320C6711DGDP250 Texas Instruments - Yeehing Electronics
C67x floating-point DSP- up to 250MHz, McBSP, 32-Bit EMIFA
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.79 |
| 100 — 249 | 21.147 |
| 250 — 999 | 17.384 |
| 1,000 + | 10.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | N |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-272 |
| Series | TMS320C6711D |
| Product | DSPs |
| Core | TMS320 |
| Maximum Clock Frequency | 250 MHz |
| Program Memory Size | 64 kB |
| Data RAM Size | 512 kB |
| Operating Supply Voltage | 1.4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Program Memory Type | Asynchronous SRAM, Synchronous SBSRAM, SDRAM |
| Brand | Texas Instruments |
| Number of I/Os | 5 I/O |
| Data Bus Width | 32 bit |
| Instruction Type | Floating Point |
| MMACS | 400 MMACS |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 40 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | TMS320 TMS320C6000 C6000 |
| Unit Weight | 0.110817 oz |
For more information, please refer to datasheet
Documents
| TMS320C6711DGDP250 Datasheet |
More Information
The TMS320C67x DSPs (including the TMS320C6711, TMS320C6711B, TMS320C6711C, TMS320C6711D devices) compose the floating-point DSP family in the TMS320C6000 DSP platform. The C6711, C6711B, C6711C, and C6711D devices are based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications.
