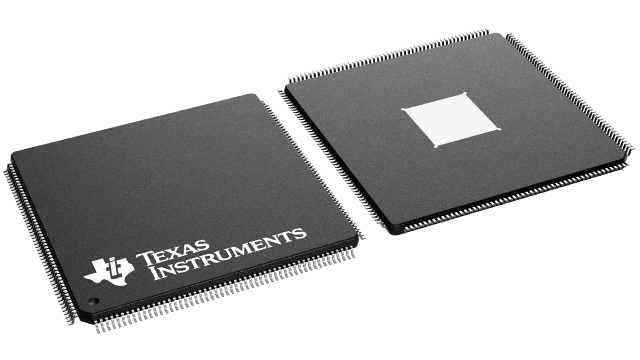

Texas Instruments
TMS320C6713BPYP200
TMS320C6713BPYP200
Regular price
$13.52 USD
Regular price
Sale price
$13.52 USD
Unit price
per
Couldn't load pickup availability
TMS320C6713BPYP200 Texas Instruments - Yeehing Electronics
C67x floating-point DSP- up to 300MHz, McBSP, 16-Bit EMIFA
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 25.852 |
| 100 — 249 | 22.98 |
| 250 — 999 | 18.891 |
| 1,000 + | 13.52 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HLQFP-208 |
| Series | TMS320C6713B |
| Product | DSPs |
| Core | TMS320 |
| Maximum Clock Frequency | 200 MHz |
| Program Memory Size | 8 kB |
| Data RAM Size | 256 kB |
| Operating Supply Voltage | 1.2 V, 1.26 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 90 C |
| Packaging | Tray |
| Height | 1.45 mm |
| Length | 28 mm |
| Program Memory Type | Asynchronous SRAM, Synchronous SBSRAM, SDRAM |
| Width | 28 mm |
| Brand | Texas Instruments |
| Number of I/Os | 16 I/O |
| Data Bus Width | 32 bit |
| Instruction Type | Floating Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 36 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | TMS320 TMS320C6000 C6000 |
| Unit Weight | 0.092502 oz |
For more information, please refer to datasheet
Documents
| TMS320C6713BPYP200 Datasheet |
More Information
The TMS320C67x DSPs (including the TMS320C6713B device) compose the floating-point DSP generation in the TMS320C6000 DSP platform. The C6713B device is based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making this DSP an excellent choice for multichannel and multifunction applications.
