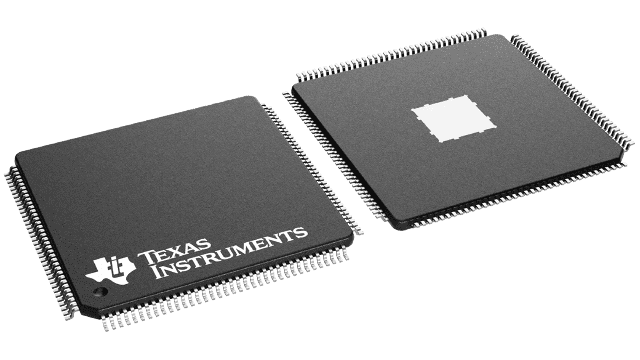

TMS320C6720BRFP200 Texas Instruments - Yeehing Electronics
C67x floating-point DSP - 200MHz, McASP, 16-Bit EMIFA
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 10.357 |
100 — 249 | 9.047 |
250 — 999 | 6.975 |
1,000 + | 4.37 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Digital Signal Processors & Controllers - DSP, DSC |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | HTQFP-144 |
Series | TMS320C6720 |
Product | DSPs |
Core | TMS320 |
Maximum Clock Frequency | 200 MHz |
Program Memory Size | 384 kB |
Data RAM Size | 64 kB |
Operating Supply Voltage | 1.2 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 90 C |
Packaging | Tube |
Program Memory Type | Asynchronous RAM, ROM, SDR, SDRAM |
Brand | Texas Instruments |
Data ROM Size | 384 kB |
Data Bus Width | 32 bit |
Instruction Type | Floating Point |
Moisture Sensitive | Yes |
Product Type | DSP - Digital Signal Processors & Controllers |
Factory Pack Quantity | 60 |
Subcategory | Embedded Processors & Controllers |
Tradename | TMS320 TMS320C6000 C6000 |
Unit Weight | 0.036290 oz |
For more information, please refer to datasheet
Documents
TMS320C6720BRFP200 Datasheet |
More Information
The TMS320C672x is the next generation of Texas Instruments' C67x generation of high-performance 32-/64-bit floating-point digital signal processors. The TMS320C672x includes the TMS320C6727B, TMS320C6726B, TMS320C6722B, and TMS320C6720 devices.(1)
