Texas Instruments

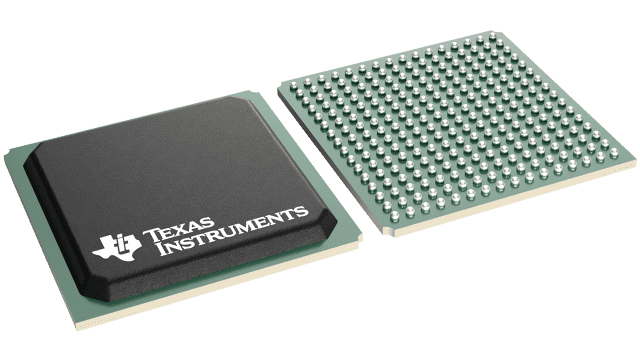

TMS320C6727BGDH350
TMS320C6727BGDH350
Regular price
$17.88 USD
Regular price
Sale price
$17.88 USD
Unit price
per
Couldn't load pickup availability
TMS320C6727BGDH350 Texas Instruments - Yeehing Electronics
C67x floating-point DSP- up to 350MHz, McASP, 32-Bit EMIFA
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 39.084 |
| 100 — 249 | 34.741 |
| 250 — 999 | 28.559 |
| 1,000 + | 17.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | E |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-256 |
| Series | TMS320C6727B |
| Product | DSPs |
| Core | C67x |
| Maximum Clock Frequency | 350 MHz |
| Program Memory Size | 384 kB |
| Data RAM Size | 256 kB |
| Operating Supply Voltage | 1.4 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 90 C |
| Packaging | Tray |
| Program Memory Type | Asynchronous RAM, ROM, SDR, SDRAM |
| Brand | Texas Instruments |
| Data ROM Size | 384 kB |
| Data Bus Width | 32 bit |
| Instruction Type | Floating Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 90 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | TMS320 TMS320C6000 C6000 |
| Unit Weight | 0.098203 oz |
For more information, please refer to datasheet
Documents
| TMS320C6727BGDH350 Datasheet |
More Information
The TMS320C672x is the next generation of Texas Instruments' C67x generation of high-performance 32-/64-bit floating-point digital signal processors. The TMS320C672x includes the TMS320C6727B, TMS320C6726B, TMS320C6722B, and TMS320C6720 devices.(1)
