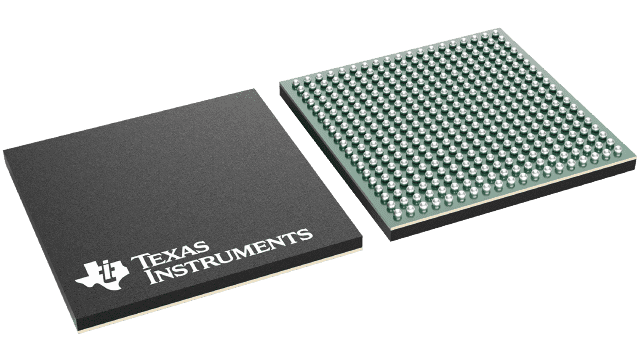

TMS320C6746EZWT4 Texas Instruments - Yeehing Electronics

Low power C674x floating-point DSP- 456MHz

Pricing (USD)

Quantity	Unit Price
1 — 99	13.688
100 — 249	11.957
250 — 999	9.219
1,000 +	4.11

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	PBGA-361
Series	TMS320C6746
Product	DSPs
Core	C674x
Maximum Clock Frequency	456 MHz
L1 Cache Instruction Memory	32 kB
L1 Cache Data Memory	32 kB
Program Memory Size	-
Operating Supply Voltage	1 V, 1.1 V, 1.2 V, 1.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tray
Height	0.94 mm
Length	13 mm
Width	13 mm
Brand	Texas Instruments
Interface Type	I2C, SATA, SPI, UART, USB
Data Bus Width	8 bit/16 bit/32 bit/64 bit
I/O Voltage	1.8 V, 3.3 V
Instruction Type	Fixed/Floating Point
L2 Cache Instruction / Data Memory	256 kB
Moisture Sensitive	Yes
Number of Cores	1 Core
Number of Timers/Counters	3 x 64 bit
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.35 V
Supply Voltage - Min	950 mV
Watchdog Timers	Watchdog Timer
Unit Weight	0.027845 oz

For more information, please refer to datasheet

Documents

TMS320C6746EZWT4 Datasheet

More Information

The TMS320C6746 fixed- and floating-point DSP is a low-power applications processor based on a C674x DSP core. This DSP provides significantly lower power than other members of the TMS320C6000™ platform of DSPs.
