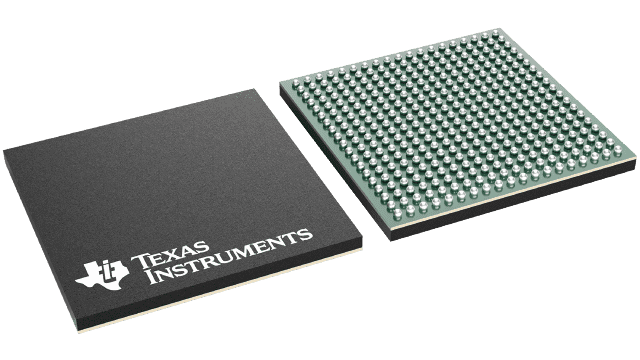

TMS320C6746EZWTA3 Texas Instruments - Yeehing Electronics

Low power C674x floating-point DSP- 456MHz

Pricing (USD)

Quantity	Unit Price
1 — 99	13.688
100 — 249	11.957
250 — 999	9.219
1,000 +	5.77

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	PBGA-361
Series	TMS320C6746
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tray
Height	0.94 mm
Length	13 mm
Width	13 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Tradename	TMS320 TMS320C6000 C6000
Unit Weight	0.027845 oz

For more information, please refer to datasheet

Documents

TMS320C6746EZWTA3 Datasheet

More Information

The TMS320C6746 fixed- and floating-point DSP is a low-power applications processor based on a C674x DSP core. This DSP provides significantly lower power than other members of the TMS320C6000™ platform of DSPs.
