Description

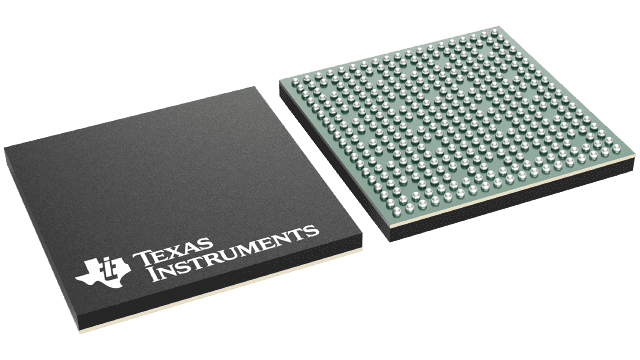

TMS320DM368ZCE Texas Instruments - Yeehing Electronics
DaVinci Digital Media Processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 28.204 |
| 100 — 249 | 25.07 |
| 250 — 999 | 20.609 |
| 1,000 + | 12.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-338 |
| Series | TMS320DM368 |
| Product | DSPs |
| Core | ARM926EJ-S |
| Maximum Clock Frequency | 432 MHz |
| L1 Cache Instruction Memory | 16 kB |
| L1 Cache Data Memory | 8 kB |
| Data RAM Size | 32 kB |
| Operating Supply Voltage | 1.35 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Data ROM Size | 16 kB |
| Interface Type | I2C, PSI, UART, USB, Video |
| Data Bus Width | 16 bit/32 bit |
| Development Kit | TMDXEVM368 |
| I/O Voltage | 1.8 V, 3.3 V |
| Moisture Sensitive | Yes |
| Number of Cores | 1 Core |
| Number of Timers/Counters | 4 x 64 bit |
| Processor Series | DaVinci |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 160 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | DaVinci TMS320 |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.174994 oz |
For more information, please refer to datasheet
Documents
| TMS320DM368ZCE Datasheet |
More Information
Developers can now deliver crystal clear multi-format video at up to 1080p H.264 at 30fps (encode and closed-looped decode) in their digital video designs without concerns of video format support, constrained network bandwidth, limited system storage capacity or cost with the new TMS320DM368 DaVinci™ video processors from Texas Instruments Incorporated (TI).
