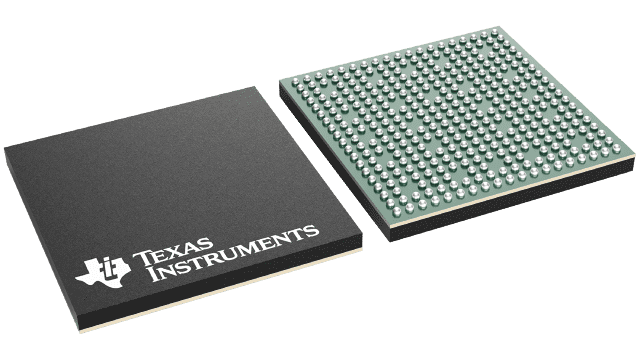

TMS320DM369ZCEDF


YeeHing #: Y010-TMS320DM369ZCEDF
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TMS320DM369ZCEDF Texas Instruments - Yeehing Electronics

DaVinci Digital Media Processor

Pricing (USD)

Quantity Unit Price
1 — 99 35.011
100 — 249 31.121
250 — 999 25.583
1,000 + 16.02

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital Signal Processors & Controllers - DSP, DSC
RoHS Y
Mounting Style SMD/SMT
Package / Case NFBGA-338
Series TMS320DM369
Product DSPs
Core ARM926EJ-S
Maximum Clock Frequency 432 MHz
L1 Cache Instruction Memory 16 kB
L1 Cache Data Memory 8 kB
Data RAM Size 32 kB
Operating Supply Voltage 1.35 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Tray
Brand Texas Instruments
Data ROM Size 16 kB
Interface Type Ethernet, I2C, SPI, UART, USB, Video
Data Bus Width 16 bit/32 bit
I/O Voltage 1.8 V, 3.3 V
Moisture Sensitive Yes
Number of Cores 1 Core
Number of Timers/Counters 4 x 64 bit
Processor Series DaVinci
Product Type DSP - Digital Signal Processors & Controllers
Factory Pack Quantity 160
Subcategory Embedded Processors & Controllers
Tradename DaVinci TMS320
Unit Weight 0.014406 oz

For more information, please refer to datasheet

Documents

TMS320DM369ZCEDF Datasheet

More Information

Developers can now deliver crystal-clear multiformat video at up to 1080 p H.264 at 30 fps (encode and closed-looped decode) in their digital video designs without concerns of video format support, constrained network bandwidth, limited system storage capacity or cost with the new TMS320DM369 DaVinci™ video processors from TI.
