Description

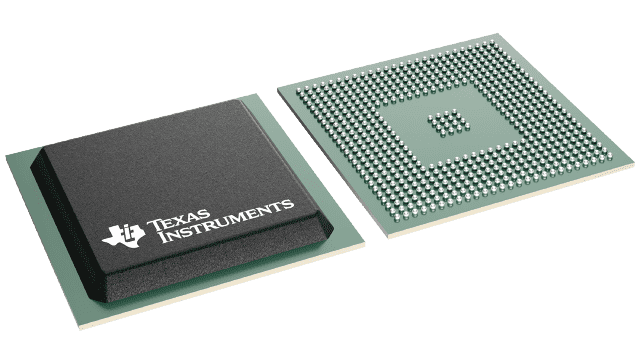

TMS320DM642AGDK6 Texas Instruments - Yeehing Electronics
Video/Imaging Fixed-Point Digital Signal Processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | E |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-548 |
| Series | TMS320DM642 |
| Product | DSPs |
| Core | TMS320C64x |
| Maximum Clock Frequency | 600 MHz |
| L1 Cache Instruction Memory | 16 kB |
| L1 Cache Data Memory | 16 kB |
| Operating Supply Voltage | 1.4 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 90 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Interface Type | Ethernet, I2C, PCI, Video |
| Number of I/Os | 16 I/O |
| Data Bus Width | 32 bit |
| I/O Voltage | 3.3 V |
| Instruction Type | Fixed Point |
| L2 Cache Instruction / Data Memory | 256 kB |
| Moisture Sensitive | Yes |
| Number of Cores | 1 Core |
| Number of Timers/Counters | 3 x 32 bit |
| Processor Series | DaVinci |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | DaVinci TMS320 |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.086284 oz |
For more information, please refer to datasheet
Documents
| TMS320DM642AGDK6 Datasheet |
More Information
The TMS320C64x™ DSPs (including the TMS320DM642 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The TMS320DM642 (DM642) device is based on the second-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture (VelociTI.2™) developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The C64x™ is a code-compatible member of the C6000™ DSP platform.
