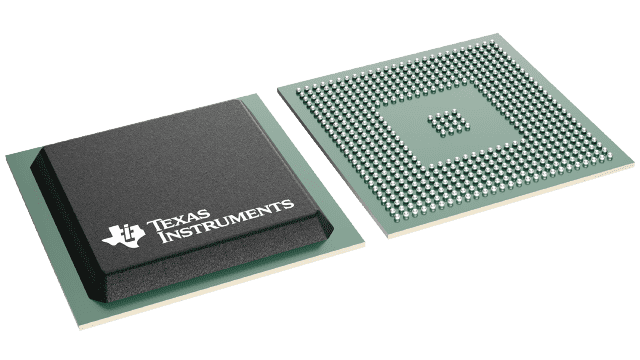

TMS320DM642AZDK6


YeeHing #: Y010-TMS320DM642AZDK6
Inventory: 4600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TMS320DM642AZDK6 Texas Instruments - Yeehing Electronics

Video/Imaging Fixed-Point Digital Signal Processor

Pricing (USD)

Quantity Unit Price
1 — 99 68.841
100 — 249 61.192
250 — 999 50.303
1,000 + 31.50

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital Signal Processors & Controllers - DSP, DSC
RoHS E
Mounting Style SMD/SMT
Package / Case BGA-548
Series TMS320DM642
Product DSPs
Core TMS320C64x
Maximum Clock Frequency 600 MHz
L1 Cache Instruction Memory 16 kB
L1 Cache Data Memory 16 kB
Operating Supply Voltage 1.4 V
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 90 C
Packaging Tray
Brand Texas Instruments
Interface Type Ethernet, I2C, PCI, Video
Number of I/Os 16 I/O
Data Bus Width 32 bit
I/O Voltage 3.3 V
Instruction Type Fixed Point
L2 Cache Instruction / Data Memory 256 kB
Moisture Sensitive Yes
Number of Cores 1 Core
Number of Timers/Counters 3 x 32 bit
Processor Series DaVinci
Product Type DSP - Digital Signal Processors & Controllers
Factory Pack Quantity 60
Subcategory Embedded Processors & Controllers
Tradename DaVinci TMS320
Watchdog Timers Watchdog Timer
Unit Weight 0.086284 oz

For more information, please refer to datasheet

Documents

TMS320DM642AZDK6 Datasheet

More Information

The TMS320C64x™ DSPs (including the TMS320DM642 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The TMS320DM642 (DM642) device is based on the second-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture (VelociTI.2™) developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The C64x™ is a code-compatible member of the C6000™ DSP platform.
