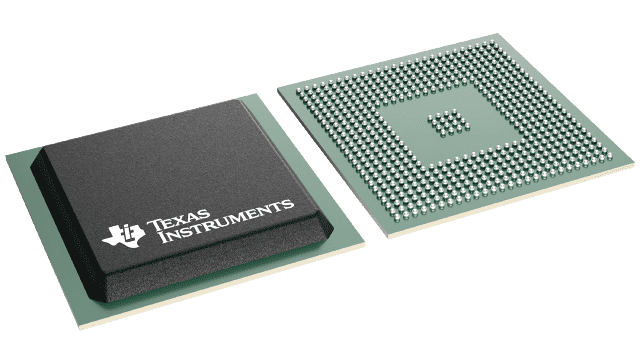

TMS320DM642AZDK7 Texas Instruments - Yeehing Electronics

Video/Imaging Fixed-Point Digital Signal Processor

Pricing (USD)

Quantity	Unit Price
1 — 99	83.779
100 — 249	81.26
250 — 999	67.653
1,000 +	44.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	E
Mounting Style	SMD/SMT
Package / Case	BGA-548
Series	TMS320DM642
Product	DSPs
Core	TMS320C64x
Maximum Clock Frequency	720 MHz
L1 Cache Instruction Memory	16 kB
L1 Cache Data Memory	16 kB
Operating Supply Voltage	1.4 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 90 C
Packaging	Tray
Brand	Texas Instruments
Interface Type	Ethernet, I2C, PCI, Video
Number of I/Os	16 I/O
Data Bus Width	32 bit
I/O Voltage	3.3 V
Instruction Type	Fixed Point
L2 Cache Instruction / Data Memory	256 kB
Moisture Sensitive	Yes
Number of Cores	1 Core
Number of Timers/Counters	3 x 32 bit
Processor Series	DaVinci
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	60
Subcategory	Embedded Processors & Controllers
Tradename	DaVinci TMS320
Watchdog Timers	Watchdog Timer
Part # Aliases	TMS320DM642AZDK7HK VCBUP2A7
Unit Weight	0.086284 oz

For more information, please refer to datasheet

Documents

TMS320DM642AZDK7 Datasheet

More Information

The TMS320C64x™ DSPs (including the TMS320DM642 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The TMS320DM642 (DM642) device is based on the second-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture (VelociTI.2™) developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The C64x™ is a code-compatible member of the C6000™ DSP platform.
