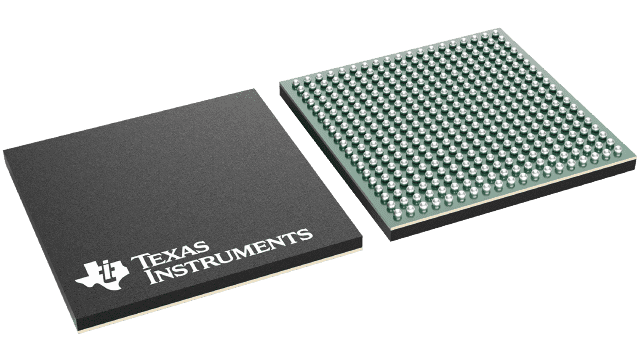

TMS320DM6431ZWT3 Texas Instruments - Yeehing Electronics

Digital Media Processor

Pricing (USD)

Quantity	Unit Price
1 — 99	17.601
100 — 249	15.374
250 — 999	11.854
1,000 +	7.42

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	PBGA-361
Series	TMS320DM6431
Product	DSPs
Core	TMS320C64x
Maximum Clock Frequency	300 MHz
L1 Cache Instruction Memory	32 kB
L1 Cache Data Memory	64 kB
Operating Supply Voltage	1.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Brand	Texas Instruments
Interface Type	Audio, Ethernet, I2C, UART, Video
Number of I/Os	111 I/O
Data Bus Width	32 bit
I/O Voltage	1.8 V, 3.3 V
Instruction Type	Fixed Point
L2 Cache Instruction / Data Memory	64 kB
Moisture Sensitive	Yes
Number of Cores	1 Core
Number of Timers/Counters	2 x 64 bit
Processor Series	DaVinci
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Tradename	DaVinci
Watchdog Timers	Watchdog Timer
Unit Weight	0.027845 oz

For more information, please refer to datasheet

Documents

TMS320DM6431ZWT3 Datasheet

More Information

The TMS320C64x+™ DSPs (including the TMS320DM6431 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The DM6431 device is based on the third-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The C64x+™ devices are upward code-compatible from previous devices that are part of the C6000™ DSP platform. The C64x™ DSPs support added functionality and have an expanded instruction set from previous devices.
