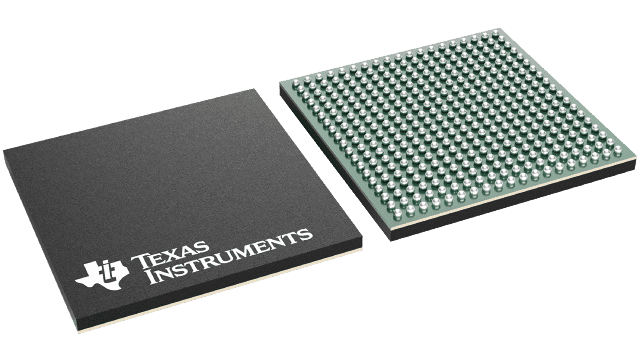

TMS320DM6437ZWTQ5 Texas Instruments - Yeehing Electronics

Digital media processor, up to 4800 MIPS, 600 MHz clock rate, 1 McASP, 2 McBSP

Pricing (USD)

Quantity	Unit Price
1 — 99	35.917
100 — 249	31.926
250 — 999	26.245
1,000 +	18.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	PBGA-361
Series	TMS320DM6437
Product	DSPs
Core	TMS320C64x
Maximum Clock Frequency	500 MHz
L1 Cache Instruction Memory	32 kB
L1 Cache Data Memory	80 kB
Operating Supply Voltage	1.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Tube
Brand	Texas Instruments
Data ROM Size	64 kB
Interface Type	Audio, Ethernet, I2C, SPI, UART, USB, Video
Number of I/Os	111 I/O
Data Bus Width	32 bit
Development Kit	TMDSVDP6437
I/O Voltage	1.8 V, 3.3 V
Instruction Type	Fixed Point
L2 Cache Instruction / Data Memory	128 kB
Moisture Sensitive	Yes
Number of Cores	1 Core
Number of Timers/Counters	2 x 64 bit
Processor Series	DaVinci
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Tradename	DaVinci
Watchdog Timers	Watchdog Timer
Part # Aliases	TNETV6437INZWTQ5
Unit Weight	0.027845 oz

For more information, please refer to datasheet

Documents

TMS320DM6437ZWTQ5 Datasheet

More Information

The TMS320C64x+™ DSPs (including the TMS320DM6437 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The DM6437 device is based on the third-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The C64x+™ devices are upward code-compatible from previous devices that are part of the C6000™ DSP platform. The C64x™ DSPs support added functionality and have an expanded instruction set from previous devices.
