Description

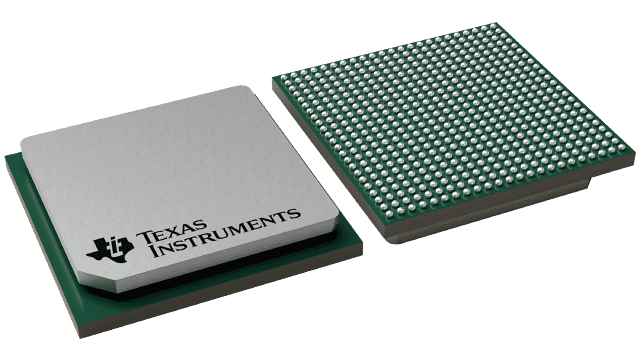

TMS320DM6467CCUTA Texas Instruments - Yeehing Electronics
Digital Media System-on-Chip
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 100.509 |
| 100 — 249 | 97.487 |
| 250 — 999 | 81.163 |
| 1,000 + | 52.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-529 |
| Series | TMS320DM6467 |
| Product | DSPs |
| Core | TMS320C64x, ARM926EJ-S |
| Maximum Clock Frequency | 594 MHz, 297 MHz |
| L1 Cache Instruction Memory | 32 kB, 16 kB |
| L1 Cache Data Memory | 32 kB, 8 kB |
| Data RAM Size | 32 kB |
| Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Brand | Texas Instruments |
| Data ROM Size | 8 kB |
| Interface Type | Ethernet, I2C, PCI, UART, USB, Video |
| Number of I/Os | 33 I/O |
| Data Bus Width | 32 bit |
| Development Kit | TMDXEVM6467 |
| I/O Voltage | 1.8 V, 3.3 V |
| Instruction Type | Fixed Point |
| L2 Cache Instruction / Data Memory | 128 kB |
| Moisture Sensitive | Yes |
| Number of Cores | 2 Core |
| Number of Timers/Counters | 2 x 64 bit |
| Processor Series | DaVinci |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 84 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | DaVinci |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.110457 oz |
For more information, please refer to datasheet
Documents
| TMS320DM6467CCUTA Datasheet |
More Information
The TMS320DM6467 (also referenced as DM6467) leverages TI's DaVinci™ technology to meet the networked media encode and decode digital media processing needs of next-generation embedded devices.
