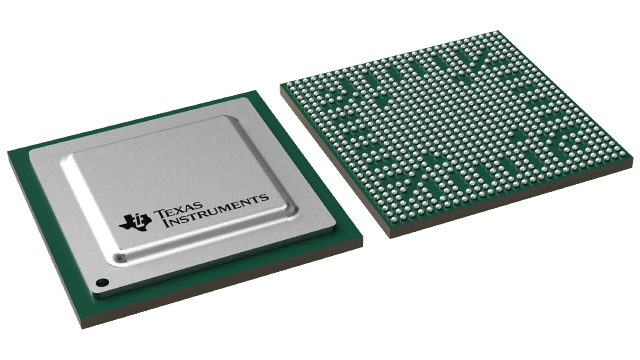

TMS320DM8127SCYE3 Texas Instruments - Yeehing Electronics

DaVinci Digital Media Processor

Pricing (USD)

Quantity	Unit Price
1 — 99	77.368
100 — 249	68.771
250 — 999	56.534
1,000 +	35.40

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	FCBGA-648
Series	TMS320DM8127
Product	DSPs
Core	TMS320C674x, ARM Cortex A8
Maximum Clock Frequency	750 MHz, 1 GHz
L1 Cache Instruction Memory	32 kB, 32 kB
L1 Cache Data Memory	32 kB, 32 kB
Data RAM Size	64 kB
Operating Supply Voltage	1.1 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 90 C
Brand	Texas Instruments
Data ROM Size	48 kB
Interface Type	CAN, Ethernet, I2C, PCI, SPI, UART, USB, Video
Number of I/Os	128 I/O
Data Bus Width	32 bit
I/O Voltage	1.5 V, 1.8 V, 3.3 V
Instruction Type	Floating Point
L2 Cache Instruction / Data Memory	256 kB, 256 kB
Moisture Sensitive	Yes
Number of Cores	2 Core
Number of Timers/Counters	8 x 32 bit
Processor Series	DaVinci
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	60
Subcategory	Embedded Processors & Controllers
Watchdog Timers	Watchdog Timer
Unit Weight	0.142027 oz

For more information, please refer to datasheet

Documents

TMS320DM8127SCYE3 Datasheet

More Information

TMS320DM8127 DaVinci Digital Media processors are highly integrated, programmable platforms that leverage the technology to meet the processing needs of the following applications to name a few:IP Network Cameras Industrial Automation Network Cameras Stereo Cameras Video Surveillance HD Video Conferencing Car Black BoxHome Audio and Video Equipment
