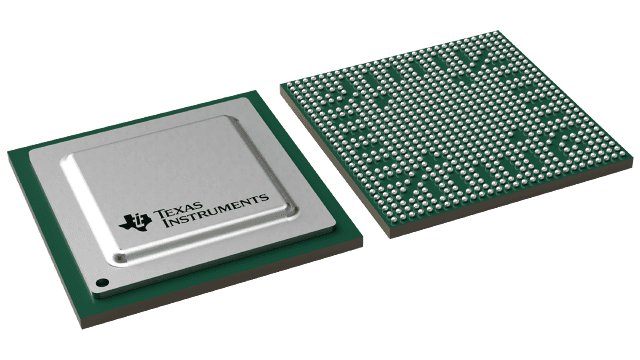

TMS320DM8148CCYE0


YeeHing #: Y010-TMS320DM8148CCYE0
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TMS320DM8148CCYE0 Texas Instruments - Yeehing Electronics

DaVinci Digital Media Processor

Pricing (USD)

Quantity Unit Price
1 — 99 62.133
100 — 249 55.23
250 — 999 45.402
1,000 + 28.43

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital Signal Processors & Controllers - DSP, DSC
RoHS Y
Mounting Style SMD/SMT
Package / Case FCBGA-684
Series TMS320DM8148
Product DSPs
Core TMS320C674x, ARM Cortex A8
Maximum Clock Frequency 600 MHz, 720 MHz
L1 Cache Instruction Memory 32 kB, 32 kB
L1 Cache Data Memory 32 kB, 32 kB
Data RAM Size 64 kB
Operating Supply Voltage 1.2 V
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 90 C
Packaging Tray
Brand Texas Instruments
Data ROM Size 48 kB
Interface Type CAN, I2C, PCIe, SPI, UART, USB, Video
Number of I/Os 128 I/O
Data Bus Width 32 bit
I/O Voltage 1.8 V, 3.3 V
Instruction Type Floating Point
L2 Cache Instruction / Data Memory 256 kB, 512 kB
Moisture Sensitive Yes
Number of Cores 2 Core
Number of Timers/Counters 8 x 32 bit
Processor Series DaVinci
Product Type DSP - Digital Signal Processors & Controllers
Factory Pack Quantity 60
Subcategory Embedded Processors & Controllers
Watchdog Timers Watchdog Timer

For more information, please refer to datasheet

Documents

TMS320DM8148CCYE0 Datasheet

More Information

TMS320DM814x DaVinci video processors are highly integrated, programmable platforms that leverage the DaVinci processor technology to meet the processing needs of the following applications to name a few: HD Video Conferencing - Skype endpoints Video Surveillance DVRs IP Netcam Digital Signage Media Players and Adapters Mobile Medical Imaging Network Projectors Home Audio and Video Equipment
