Texas Instruments

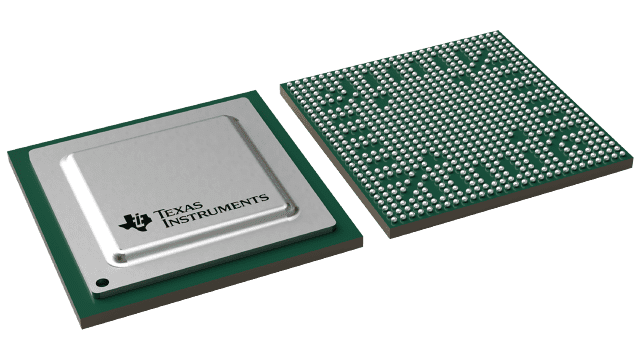

TMS320DM8148CCYE2
TMS320DM8148CCYE2
Regular price
$20.57 USD
Regular price
Sale price
$20.57 USD
Unit price
per
Couldn't load pickup availability
TMS320DM8148CCYE2 Texas Instruments - Yeehing Electronics
DaVinci Digital Media Processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 69.589 |
| 100 — 249 | 61.857 |
| 250 — 999 | 50.85 |
| 1,000 + | 20.57 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-684 |
| Series | TMS320DM8148 |
| Product | DSPs |
| Core | TMS320C674x, ARM Cortex A8 |
| Maximum Clock Frequency | 750 MHz, 1 GHz |
| L1 Cache Instruction Memory | 32 kB, 32 kB |
| L1 Cache Data Memory | 32 kB, 32 kB |
| Data RAM Size | 64 kB |
| Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 90 C |
| Brand | Texas Instruments |
| Data ROM Size | 48 kB |
| Interface Type | CAN, I2C, PCIe, SPI, UART, USB, Video |
| Number of I/Os | 128 I/O |
| Data Bus Width | 32 bit |
| I/O Voltage | 1.8 V, 3.3 V |
| Instruction Type | Floating Point |
| L2 Cache Instruction / Data Memory | 256 kB, 512 kB |
| Moisture Sensitive | Yes |
| Number of Cores | 2 Core |
| Number of Timers/Counters | 8 x 32 bit |
| Processor Series | DaVinci |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Supply Voltage - Max | 3.47 V |
| Supply Voltage - Min | 1.05 V |
| Tradename | DaVinci |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.142027 oz |
For more information, please refer to datasheet
Documents
| TMS320DM8148CCYE2 Datasheet |
More Information
TMS320DM814x DaVinci video processors are highly integrated, programmable platforms that leverage the DaVinci processor technology to meet the processing needs of the following applications to name a few: HD Video Conferencing - Skype endpoints Video Surveillance DVRs IP Netcam Digital Signage Media Players and Adapters Mobile Medical Imaging Network Projectors Home Audio and Video Equipment
