Texas Instruments

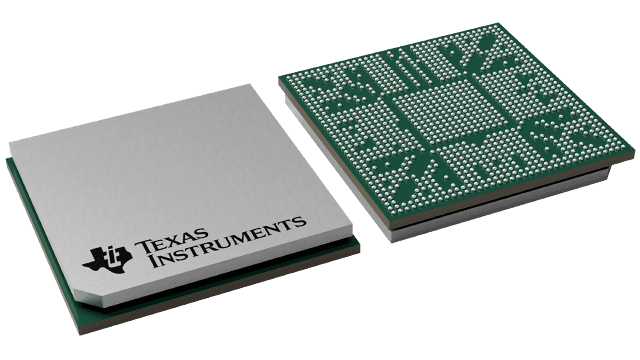

TMS320DM8168CCYGA2
TMS320DM8168CCYGA2
Regular price
$77.96 USD
Regular price
Sale price
$77.96 USD
Unit price
per
Couldn't load pickup availability
TMS320DM8168CCYGA2 Texas Instruments - Yeehing Electronics
DaVinci Digital Media Processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 129.188 |
| 100 — 249 | 116.937 |
| 250 — 999 | 113.596 |
| 1,000 + | 77.96 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-1031 |
| Series | TMS320DM8168 |
| Product | DSPs |
| Core | TMS320C674x, ARM Cortex A8 |
| Maximum Clock Frequency | 930 MHz, 1.1 GHz |
| L1 Cache Instruction Memory | 32 kB, 32 kB |
| L1 Cache Data Memory | 32 kB, 32 kB |
| Data RAM Size | 64 kB |
| Operating Supply Voltage | 1 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Brand | Texas Instruments |
| Data ROM Size | 48 kB |
| Interface Type | Ethernet, I2C, PCIe, SPI, UART, USB, Video |
| Number of I/Os | 64 I/O |
| Data Bus Width | 32 bit |
| Development Kit | TMDXEVM8168 |
| I/O Voltage | 1.5 V, 1.8 V, 3.3 V |
| Instruction Type | Floating Point |
| L2 Cache Instruction / Data Memory | 256 kB, 256 kB |
| Moisture Sensitive | Yes |
| Number of Cores | 2 Core |
| Number of Timers/Counters | 7 x 32 bit |
| Processor Series | DaVinci |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 44 |
| Subcategory | Embedded Processors & Controllers |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.264749 oz |
For more information, please refer to datasheet
Documents
| TMS320DM8168CCYGA2 Datasheet |
More Information
The DM816x DaVinci video processors are a highly integrated, programmable platform that leverages TI's DaVinci technology to meet the processing needs of the following applications: video encode, decode, transcode, and transrate; video security; video conferencing; video infrastructure; media server; and digital signage.
