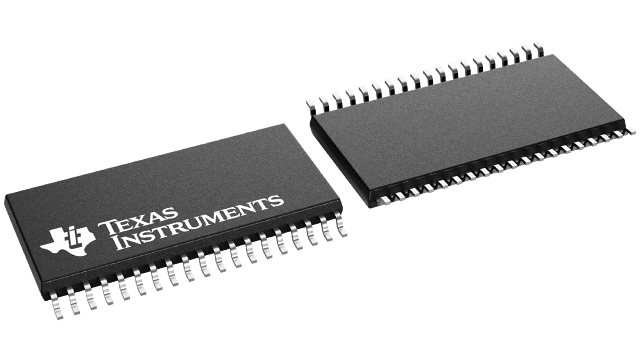

TMS320F28023DAT Texas Instruments - Yeehing Electronics

C2000™ 32-bit MCU with 50 MHz, 64 KB flash

Pricing (USD)

Quantity	Unit Price
1 — 99	4.729
100 — 249	3.855
250 — 999	3.03
1,000 +	1.80

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	32-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TSSOP-38
Series	TMS320F28023
Core	C28x
Data Bus Width	32 bit
Maximum Clock Frequency	50 MHz
Program Memory Size	64 kB
Data RAM Size	12 kB
ADC Resolution	12 bit
Number of I/Os	20 I/O
Operating Supply Voltage	1.8 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Height	1.15 mm
Length	12.5 mm
Program Memory Type	Flash
Width	6.2 mm
Brand	Texas Instruments
Interface Type	I2C, SCI, SPI
Moisture Sensitive	Yes
Number of ADC Channels	13 Channel
Number of Timers/Counters	3 Timer
Processor Series	TMS320F2x
Product Type	32-bit Microcontrollers - MCU
Factory Pack Quantity	40
Subcategory	Microcontrollers - MCU
Supply Voltage - Max	1.89 V
Supply Voltage - Min	1.71 V
Tradename	Piccolo
Unit Weight	0.007189 oz

For more information, please refer to datasheet

Documents

TMS320F28023DAT Datasheet

More Information

C2000™ 32-bit microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes the Premium performance MCUs and the Entry performance MCUs.
