Texas Instruments
TMS320F28069MPFPQ
TMS320F28069MPFPQ
Regular price
$10.72 USD
Regular price
Sale price
$10.72 USD
Unit price
per
Couldn't load pickup availability

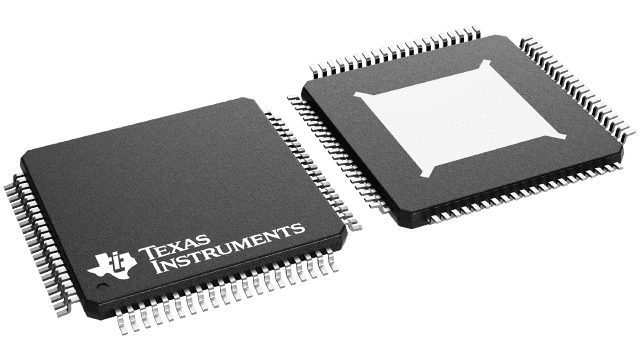

TMS320F28069MPFPQ Texas Instruments - Yeehing Electronics
Automotive C2000™ 32-bit MCU with 90 MHz, FPU, VCU, CLA, 256 KB flash, InstaSPIN-MOTION
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.427 |
| 100 — 249 | 20.824 |
| 250 — 999 | 17.119 |
| 1,000 + | 10.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 32-bit Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Series | TMS320F28069M |
| Core | C28x |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 90 MHz |
| Program Memory Size | 256 kB |
| Data RAM Size | 100 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 40 I/O |
| Operating Supply Voltage | 1.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Product | MCU |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Data RAM Type | SARAM |
| Interface Type | eCAN, I2C, McBSP, SCI, SPI, USB |
| Analog Supply Voltage | 3.3 V |
| DAC Resolution | 10 bit |
| Development Kit | DRV8312-69M-KIT |
| I/O Voltage | 3.3 V |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 16 Channel |
| Number of Timers/Counters | 3 x 32 bit |
| Processor Series | Piccolo |
| Product Type | 32-bit Microcontrollers - MCU |
| Factory Pack Quantity | 96 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 1.89 V |
| Supply Voltage - Min | 1.71 V |
| Tradename | Piccolo |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.013355 oz |
For more information, please refer to datasheet
Documents
| TMS320F28069MPFPQ Datasheet |
More Information
C2000™ 32-bit microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes the Premium performance MCUs and the Entry performance MCUs.
