Texas Instruments

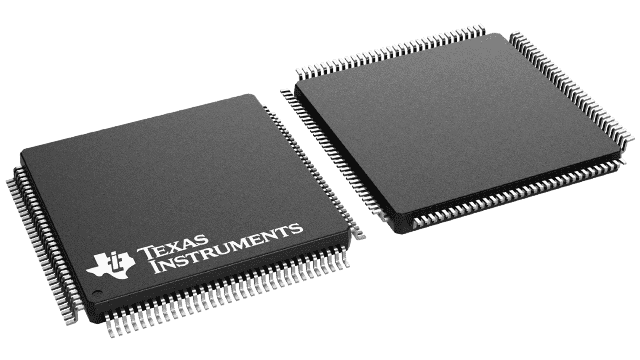

TMS320F2810PBKS
TMS320F2810PBKS
Regular price
$11.49 USD
Regular price
Sale price
$11.49 USD
Unit price
per
Couldn't load pickup availability
TMS320F2810PBKS Texas Instruments - Yeehing Electronics
C2000™ 32-bit MCU with 150 MHz, 128 KB flash
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.848 |
| 100 — 249 | 20.831 |
| 250 — 999 | 16.061 |
| 1,000 + | 11.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-128 |
| Series | TMS320F2810 |
| Product | DSPs |
| Core | TMS320 |
| Maximum Clock Frequency | 150 MHz |
| Program Memory Size | 128 kB |
| Data RAM Size | 36 kB |
| Operating Supply Voltage | 1.9 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Number of I/Os | 56 I/O |
| ADC Resolution | 12 bit |
| Data Bus Width | 32 bit |
| Instruction Type | Fixed Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 90 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | C2000 |
| Unit Weight | 0.021693 oz |
For more information, please refer to datasheet
Documents
| TMS320F2810PBKS Datasheet |
More Information
The TMS320F2810, TMS320F2811, and TMS320F2812-Q1 devices, members of the TMS320C28x DSP generation, are highly integrated, high-performance solutions for demanding control applications.
