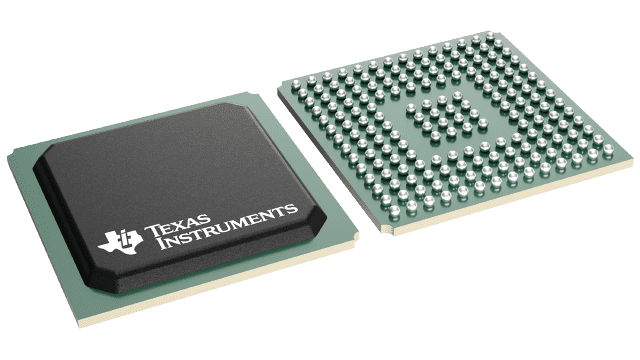

TMS320F28334ZJZS


YeeHing #: Y010-TMS320F28334ZJZS
Inventory: 4800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TMS320F28334ZJZS Texas Instruments - Yeehing Electronics

C2000™ 32-bit MCU with 150 MIPS, FPU, 256 KB flash, EMIF, 12b ADC

Pricing (USD)

Quantity Unit Price
1 — 99 18.698
100 — 249 16.621
250 — 999 13.663
1,000 + 8.55

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital Signal Processors & Controllers - DSP, DSC
RoHS Y
Mounting Style SMD/SMT
Package / Case BGA-176
Series TMS320F28334
Product DSCs
Core C2000
Maximum Clock Frequency 150 MHz
Program Memory Size 256 kB
Data RAM Size 68 kB
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Packaging Tray
Height 1.16 mm
Length 15 mm
Program Memory Type Flash
Width 15 mm
Brand Texas Instruments
Interface Type CAN/I2C/SCI/SPI/UART
Number of I/Os 88 I/O
ADC Resolution 12 bit
Data Bus Width 32 bit
Instruction Type Floating Point
Moisture Sensitive Yes
Number of Timers/Counters 3 Timer
Product Type DSP - Digital Signal Processors & Controllers
Factory Pack Quantity 126
Subcategory Embedded Processors & Controllers
Supply Voltage - Min 1.805 V, 3.135 V
Tradename Delfino
Unit Weight 0.025521 oz

For more information, please refer to datasheet

Documents

TMS320F28334ZJZS Datasheet

More Information

C2000™ real-time microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes the Premium performance MCUs and the Entry performance MCUs.
