Description

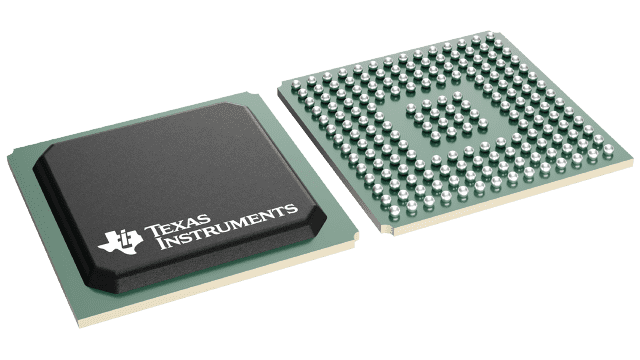

TMS320F28335ZJZQ Texas Instruments - Yeehing Electronics
Automotive C2000™ 32-bit MCU with 150 MIPS, FPU, 512 KB flash, EMIF, 12b ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 30.144 |
| 100 — 249 | 26.795 |
| 250 — 999 | 22.027 |
| 1,000 + | 13.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-176 |
| Series | TMS320F28335 |
| Product | DSCs |
| Core | TMS320 |
| Maximum Clock Frequency | 150 MHz |
| Program Memory Size | 512 kB |
| Data RAM Size | 68 kB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Height | 1.16 mm |
| Length | 15 mm |
| Program Memory Type | Flash |
| Width | 15 mm |
| Brand | Texas Instruments |
| Interface Type | CAN/I2C/SCI/SPI/UART |
| Number of I/Os | 88 I/O |
| ADC Resolution | 12 bit |
| Data Bus Width | 32 bit |
| Instruction Type | Floating Point |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 3 Timer |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 126 |
| Subcategory | Embedded Processors & Controllers |
| Supply Voltage - Min | 1.805 V, 3.135 V |
| Tradename | Delfino |
| Unit Weight | 0.025521 oz |
For more information, please refer to datasheet
Documents
| TMS320F28335ZJZQ Datasheet |
More Information
C2000™ real-time microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes the Premium performance MCUs and the Entry performance MCUs.
