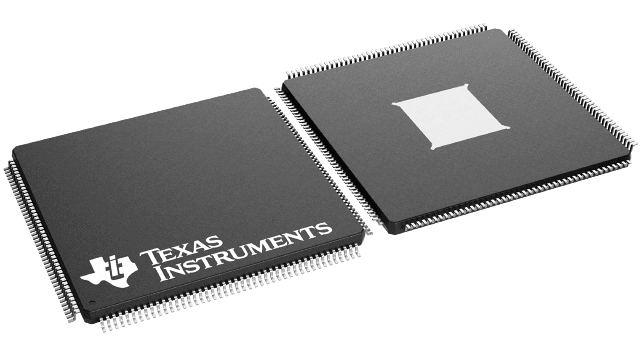

TMS320F28377DPTPQ


YeeHing #: Y010-TMS320F28377DPTPQ
Inventory: 4800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TMS320F28377DPTPQ Texas Instruments - Yeehing Electronics

Automotive C2000™ 32-bit MCU with 800 MIPS, 2xCPU, 2xCLA, FPU, TMU, 1024 KB flash, EMIF, 16b ADC

Pricing (USD)

Quantity Unit Price
1 — 99 22.143
100 — 249 19.342
250 — 999 14.913
1,000 + 9.34

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 32-bit Microcontrollers - MCU
RoHS Y
Mounting Style SMD/SMT
Package / Case HLQFP-176
Series TMS320F28377D
Core C28x
Data Bus Width 32 bit
Maximum Clock Frequency 200 MHz
Program Memory Size 1 MB
Data RAM Size 204 kB
ADC Resolution 16 bit
Number of I/Os 97 I/O
Operating Supply Voltage 1.2 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Packaging Tray
Product MCU
Program Memory Type Flash
Brand Texas Instruments
Data RAM Type RAM
Interface Type CAN, I2C, McBSP, SPI, UART, uPP, USB
Analog Supply Voltage 3.3 V
DAC Resolution 12 bit
I/O Voltage 3.3 V
Moisture Sensitive Yes
Number of ADC Channels 24 Channel
Number of Timers/Counters 6 x 32 bit
Processor Series Delfino
Product Type 32-bit Microcontrollers - MCU
Factory Pack Quantity 40
Subcategory Microcontrollers - MCU
Supply Voltage - Max 1.26 V
Supply Voltage - Min 1.14 V
Tradename Delfino
Watchdog Timers Watchdog Timer, Windowed
Unit Weight 0.091800 oz

For more information, please refer to datasheet

Documents

TMS320F28377DPTPQ Datasheet

More Information

C2000™ 32-bit microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes the Premium performance MCUs and the Entry performance MCUs.
