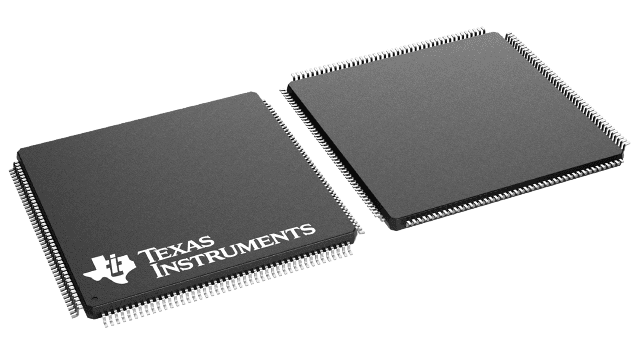

TMS320VC5501PGF300 Texas Instruments - Yeehing Electronics
Low power C55x fixed point DSP- up to 300MHz
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 24.65 |
| 100 — 249 | 22.87 |
| 250 — 999 | 21.34 |
| 1,000 + | 20.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-176 |
| Series | TMS320VC5501 |
| Product | DSPs |
| Core | TMS320 |
| Maximum Clock Frequency | 300 MHz |
| Program Memory Size | 32 kB |
| Data RAM Size | 32 kB |
| Operating Supply Voltage | 1.26 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Program Memory Type | Asynchronous SRAM, EPROM, Synchronous SDRAM, SBSRAM |
| Brand | Texas Instruments |
| Data ROM Size | 32 kB |
| Number of I/Os | 8 I/O |
| Data Bus Width | 32 bit |
| Instruction Type | Fixed Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 40 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | TMS320 |
| Part # Aliases | C55EQUAL TNETV2501INPGF VC5501LMPGF300 |
| Unit Weight | 0.066886 oz |
For more information, please refer to datasheet
Documents
| TMS320VC5501PGF300 Datasheet |
More Information
The TMS320VC5501 (5501) fixed-point digital signal processor (DSP) is based on the TMS320C55x™ DSP generation CPU processor core. The C55x™ DSP architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. These buses provide the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform data transfers independent of the CPU activity.
