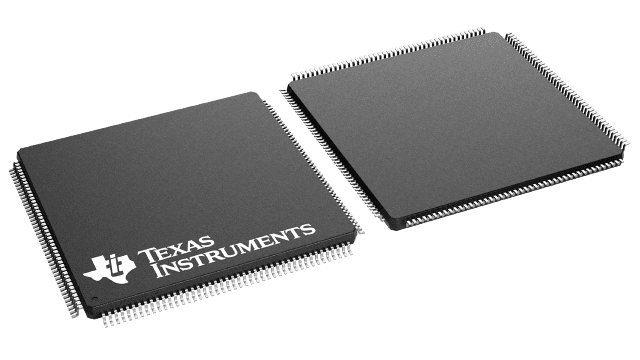

TMS320VC5502PGF200 Texas Instruments - Yeehing Electronics

Fixed-Point Digital Signal Processor

Pricing (USD)

Quantity	Unit Price
1 — 99	9.943
100 — 249	8.686
250 — 999	6.697
1,000 +	3.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	LQFP-176
Series	TMS320VC5502
Product	DSPs
Core	TMS320
Maximum Clock Frequency	200 MHz
Program Memory Size	32 kB
Data RAM Size	64 kB
Operating Supply Voltage	1.26 V, 3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Brand	Texas Instruments
Data Bus Width	32 bit
Instruction Type	Fixed Point
Moisture Sensitive	Yes
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	40
Subcategory	Embedded Processors & Controllers
Tradename	TMS320
Unit Weight	0.066886 oz

For more information, please refer to datasheet

Documents

TMS320VC5502PGF200 Datasheet

More Information

The TMS320VC5502 (5502) fixed-point digital signal processor (DSP) is based on the TMS320C55x™ DSP generation CPU processor core. The C55x™ DSP architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. These buses provide the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform data transfers independent of the CPU activity.
