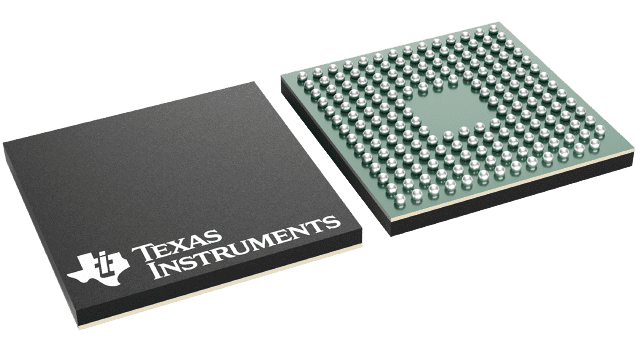

TMS320VC5506ZAY Texas Instruments - Yeehing Electronics

Low power C55x fixed point DSP - 108MHz

Pricing (USD)

Quantity	Unit Price
1 — 99	13.068
100 — 249	11.414
250 — 999	8.801
1,000 +	5.51

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TMS320VC5506ZAY Datasheet

More Information

The TMS320VC5506 fixed-point digital signal processor (DSP) is based on the TMS320C55x DSP generation CPU processor core. The C55x™ DSP architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. These buses provide the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform up to two data transfers per cycle independent of the CPU activity.
