Description

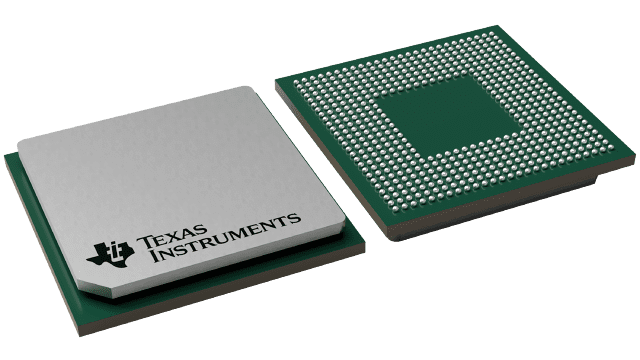

TMS32C6414EGLZA5E0 Texas Instruments - Yeehing Electronics
C64x fixed point DSP- up to 720MHz, McBSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 126.424 |
| 100 — 249 | 122.622 |
| 250 — 999 | 102.09 |
| 1,000 + | 66.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-532 |
| Series | TMS320C6414 |
| Product | DSPs |
| Maximum Clock Frequency | 500 MHz |
| Program Memory Size | 128 kB |
| Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Program Memory Type | Asynchronous SRAM, Synchronous SDRAM, SBSRAM |
| Brand | Texas Instruments |
| Number of I/Os | 16 I/O |
| Data Bus Width | 32 bit |
| Instruction Type | Fixed Point |
| Moisture Sensitive | Yes |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 60 |
| Subcategory | Embedded Processors & Controllers |
| Tradename | TMS320 |
| Unit Weight | 0.110457 oz |
For more information, please refer to datasheet
Documents
| TMS32C6414EGLZA5E0 Datasheet |
More Information
The TMS320C64x DSPs (including the TMS320C6414, TMS320C6415, and TMS320C6416 devices) are the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS320C64x (C64x) device is based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2 developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications. The C64x is a code-compatible member of the C6000 DSP platform.
