TMS32C6711DZDPA167


YeeHing #: Y010-TMS32C6711DZDPA167
Inventory: 8400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

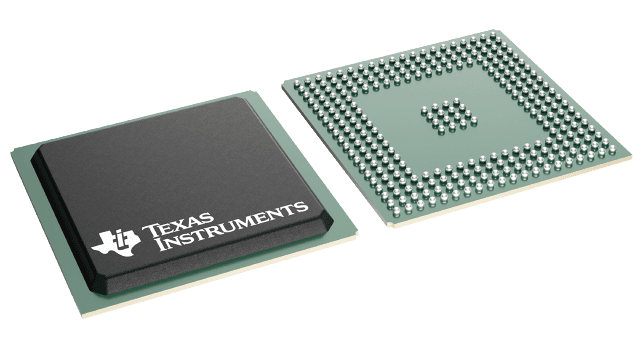

TMS32C6711DZDPA167 Texas Instruments - Yeehing Electronics

C67x floating-point DSP- up to 250MHz, McBSP, 32-Bit EMIFA

Pricing (USD)

Quantity Unit Price
1 — 99 27.534
100 — 249 24.475
250 — 999 20.12
1,000 + 12.60

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital Signal Processors & Controllers - DSP, DSC
RoHS Y
Mounting Style SMD/SMT
Package / Case BGA-272
Series TMS320C6711D
Product DSPs
Core TMS320
Maximum Clock Frequency 167 MHz
Program Memory Size 64 kB
Data RAM Size 512 kB
Operating Supply Voltage 1.26 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Packaging Tray
Program Memory Type Asynchronous SRAM, Synchronous SBSRAM, SDRAM
Brand Texas Instruments
Number of I/Os 5 I/O
Data Bus Width 32 bit
Instruction Type Floating Point
MMACS 400 MMACS
Moisture Sensitive Yes
Product Type DSP - Digital Signal Processors & Controllers
Factory Pack Quantity 40
Subcategory Embedded Processors & Controllers
Tradename TMS320
Unit Weight 0.108111 oz

For more information, please refer to datasheet

Documents

TMS32C6711DZDPA167 Datasheet

More Information

The TMS320C67x™ DSPs (including the TMS320C6711, TMS320C6711B, TMS320C6711C, TMS320C6711D devices) compose the floating-point DSP family in the TMS320C6000™ DSP platform. The C6711, C6711B, C6711C, and C6711D devices are based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications.
